Fiberglass Roofing Sheet Overview
Fiberglass roofing sheets, also known as FRP roofing sheets or composite roof panels, are lightweight panels made from fiberglass reinforced polymer (FRP... Read More
Fiberglass roofing sheets, also known as FRP roofing sheets or composite roof panels, are lightweight panels made from fiberglass reinforced polymer (FRP / GRP). They are used on industrial, commercial, and agricultural buildings where corrosion resistance and weather protection matter. Available in corrugated, trapezoidal, and flat profiles, translucent versions can bring natural daylight into the building. The material does not rust and requires little maintenance.
What Is a Fiberglass Roofing Sheet?
A fiberglass roofing sheet is a panel-shaped composite component installed as roof covering or wall cladding. It combines glass fiber reinforcement with a thermosetting resin matrix to provide weather resistance, light weight, and structural durability. Unlike metal sheets, it does not corrode, and it holds up well in humid or chemically active environments.
Profile options: Corrugated, trapezoidal, flat, or embossed
Standard thickness range: 0.8 mm to 3.0 mm
Standard width range: 600 mm to 1200 mm
Color options: Clear, blue, green, opal white, or custom colors
Material & Construction
Fiberglass roofing sheets consist of glass fiber reinforcement combined with a thermosetting resin system. This material gives the sheets resistance to moisture, salt spray, many chemicals, and UV exposure. The composite does not rust or rot, and it maintains its shape under typical outdoor temperature changes.
Surface coatings such as UV-protective films or gel coats can be applied to help maintain appearance and reduce surface weathering. Different resin systems may be specified depending on the exposure environment, including options for additional fire performance or specific chemical resistance.
Typical Applications
Fiberglass roofing sheets are widely used on buildings that need long-term weather protection and corrosion resistance. Typical installations include factories, warehouses, logistics centers, agricultural buildings, chemical processing plants, and coastal structures.

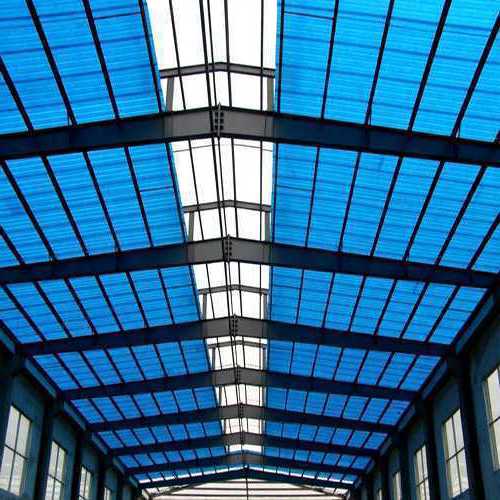

Translucent panels are often installed in workshops, greenhouses, and storage facilities where natural daylight can reduce lighting energy use while still providing a weatherproof roof surface.
Selection Considerations
When specifying fiberglass roofing sheets, the following factors typically influence design and performance:
Profile shape: Corrugated, trapezoidal, and flat profiles have different load-bearing characteristics and installation requirements. The profile should match the existing roof structure or cladding design.
Light transmission: Translucent panels are available with different light transmission levels. The required transparency depends on the building's daylighting needs and internal activities.
Resin type: Resin selection affects chemical resistance, UV stability, and fire performance. Options include standard polyester, vinyl ester, and flame-retardant formulations.
Surface treatment: Anti-UV films or gel coats can extend surface appearance and reduce yellowing under prolonged sunlight.
Installation environment: For coastal or chemically aggressive locations, a corrosion-resistant resin system should be specified. The sheet profile and fastening details should suit the expected wind loads.
Technical Specifications
Standard product options for fiberglass roofing sheets
Property
Standard Options / Values
Material
Fiberglass reinforced polymer (FRP / GRP)
Thickness
0.8 mm to 3.0 mm
Width
600 mm to 1200 mm depending on profile
Length options
Custom lengths or continuous rolls
Profile types
Corrugated, trapezoidal, flat, embossed
Color options
Clear, blue, green, opal white, custom colors
Surface options
Anti-UV film or gel coat
Light transmission, fire performance, and chemical resistance vary with the chosen configuration. Share your project details with our engineering team and we'll help you find the right sheet for your roof.
Frequently Asked Questions
What is the expected service life?
Service life depends on environmental conditions, UV exposure, and resin selection. In many applications, fiberglass roofing sheets require less maintenance than metal sheets and can provide long-term performance, but specific performance should be evaluated for each installation.
Can these sheets resist chemical exposure?
Yes, the composite material resists many acids, alkalis, salt air, and industrial fumes. The specific resin should be selected based on the chemicals present in the operating environment.
Are they suitable for high-wind areas?
The reinforced structure performs well under wind loads when properly fastened and supported. Engineering calculations should confirm the sheet and fastener spacing for the local wind conditions.
How much maintenance is required?
No painting or anti-rust treatment is needed. Occasional cleaning to remove dirt or debris is generally sufficient.
Can profiles and colors be customized?
Yes, profile shape, thickness, color, and surface treatments can be specified according to project requirements.
Related Products & System Components
Fiberglass roofing sheets are often installed with other FRP structural components. Common related items include:
FRP purlins for roof support framing
Fiberglass rain gutters for drainage systems
Fastening hardware and connection accessories
For compatible products and system-level recommendations, contact our engineering team with your project requirements. You may also review our Fiberglass Purlin or Fiberglass Rain Gutter pages for related FRP solutions.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, please submit a request. Providing the following information helps our team prepare a more relevant response:
Required sheet profile, thickness, and width
Roof area and expected wind loads
Environmental exposure (UV, chemical, coastal)
Light transmission requirements, if any
Fire performance or electrical non-conductivity needs
