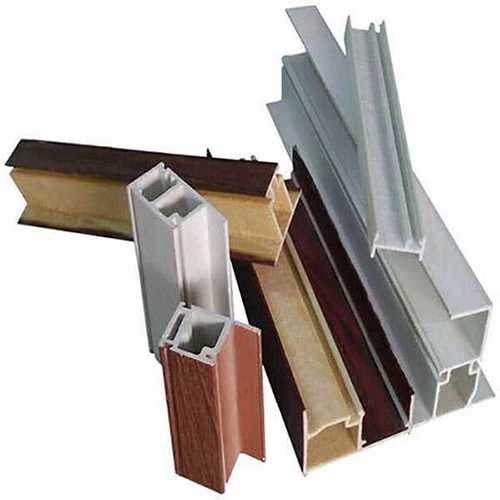

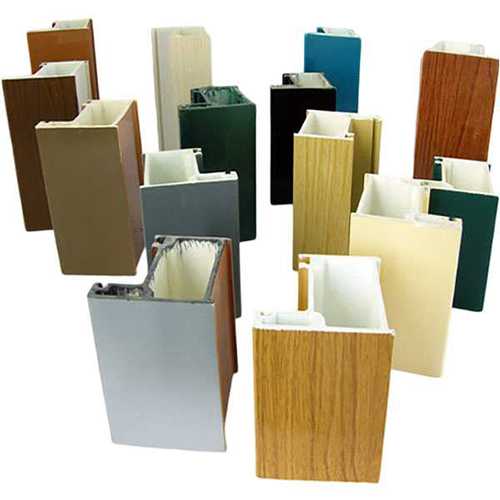

Fiberglass Window Profile Overview
Fiberglass window profiles—also called FRP or GRP window profiles—are rigid linear framing components made from glass fiber reinforcement and a thermosetting resin matrix. They are used in window systems for commercial and industrial buildings. Most profiles are produced by pultrusion, resulting in continuous lengths with uniform cross-sections. Their material properties make them a practical choice for applications where thermal insulation, dimensional stability, and resistance to moisture or corrosion are important. Performance depends on profile geometry, resin type, and fiber content.
What Is a Fiberglass Window Profile?
A fiberglass window profile is a structural framing component for glazed openings, supplied as a linear profile produced by the pultrusion process. It consists of continuous glass fibers embedded in a cured resin matrix, forming a rigid member designed to hold glass units and connect to surrounding building structures.
Key Product Facts
- Profile material: Glass fiber reinforced polymer (FRP / GRP).
- Manufacturing method: Pultrusion, which aligns fibers along the length of the profile.
- Typical use: Structural framing in window and door systems for building envelopes.
- Resin options: Available with different resin chemistries to suit exposure conditions.
Material & Construction
The profile is manufactured by pultrusion, where glass fiber rovings are pulled through a resin bath and then through a heated die. This process aligns the fibers along the profile length and cures the resin, producing a continuous section with consistent dimensions and mechanical properties.
The glass fiber reinforcement provides tensile and flexural strength. The resin matrix, which can be selected from polyester, vinyl ester, or other thermosetting systems, protects the fibers from environmental exposure and determines the profile's chemical resistance and thermal behavior. Specific fiber content and wall thickness are configured based on structural requirements.
Applications
Fiberglass window profiles are intended for use in window and door systems where long service life and low maintenance are project requirements. They are commonly used in the following building types and environments:
- Commercial office buildings and institutional facilities
- Industrial plants, utility buildings, and processing facilities
- Coastal and marine environments where salt spray is present
- Areas with high humidity or frequent temperature changes
- Projects seeking to reduce thermal bridging through the frame
These are common industry application areas; project suitability should be confirmed against actual operating conditions.
Selection Considerations
Engineers and designers evaluating fiberglass window profiles typically consider the following variables:
- Resin system chemistry relative to expected chemical exposure and UV conditions
- Profile cross-section and wall thickness to meet wind load and deflection criteria
- Fiber content and orientation for required stiffness
- Glazing type, weight, and retention method
- Thermal expansion characteristics and joint design
- Compatibility with hardware, sealants, and installation accessories
- Surface finish requirements for cleaning and aesthetics
Final profile selection depends on project-specific structural calculations and exposure data. For load ratings or design support, our engineering team can assist with your project details.
Technical Specifications
The table below outlines general material and design characteristics. Specific numeric values are not listed because they depend on the selected profile configuration.
| Characteristic | Description |
|---|---|
| Material type | Glass fiber reinforced polymer (FRP / GRP) |
| Manufacturing process | Pultrusion |
| Reinforcement | Continuous glass fiber rovings |
| Matrix | Thermosetting resin (options include polyester or vinyl ester) |
| Profile form | Custom cross-sections available based on tooling |
| Surface finish | Smooth, sanded, or coated depending on requirements |
| Color | Standard or custom color options |
| Glazing compatibility | Can be designed for fixed, casement, tilt-and-turn, or sliding systems |
For project-specific mechanical data, thermal conductivity values, or fire test results, please contact our engineering team. Exact values must be verified for the actual configuration offered.
Standards & References
Common reference standards for pultruded FRP profiles in building applications include:
- ASTM D790 — Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics
- ASTM E84 — Standard Test Method for Surface Burning Characteristics of Building Materials
- EN 13706 — Reinforced plastics composites – Specifications for pultruded profiles
Additional standards may apply depending on regional requirements and product configuration.
Frequently Asked Questions
Are fiberglass window profiles suitable for large window openings?
Pultruded fiberglass profiles can be engineered with cross-sections that provide high stiffness. Suitability for large openings depends on the selected profile dimensions, span, and design wind load. Structural calculations are required for each project.
How does fiberglass compare with aluminum window frames?
Compared with aluminum, fiberglass generally exhibits lower thermal conductivity and is not susceptible to galvanic corrosion. Mechanical strength and stiffness must be evaluated per profile design and application.
Can fiberglass window profiles be customized?
Yes, profile geometry, wall thickness, surface finish, and resin system can often be adjusted to meet project requirements. Customization lead time and feasibility depend on tooling requirements and order volume.
What resin systems are available for fiberglass window profiles?
Common resin options include polyester and vinyl ester. The choice depends on chemical exposure, UV stability requirements, and cost considerations. Other resin systems may be evaluated for specific applications.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, reach out with your project details. The following information helps our team prepare a more relevant response:
- Required profile cross-section and wall thickness
- Window opening width and height
- Design wind load and deflection criteria
- Glass type, thickness, and weight
- Expected exposure conditions (chemical, coastal, UV, temperature range)
- Surface finish and color preference
- Approximate order quantity
