Product Overview
Fiberglass door frame is a structural frame system made from FRP/GRP composite profiles, used to support doors in commercial, residential, and industrial buildings. It consists of glass fiber reinforcement in a thermosetting resin matrix. Typical applications include chemical plants, food processing, marine structures, and cleanrooms. Load capacity and dimensional details depend on the specific profile and installation conditions.
Product Definition

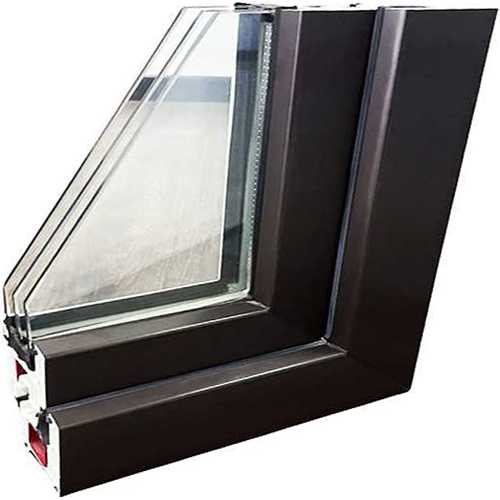

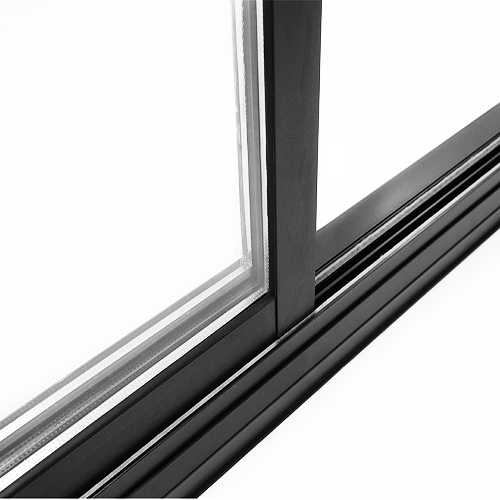

A fiberglass door frame is a structural frame component made from glass fiber reinforcement and a thermosetting resin, formed into profiles designed to hold a door leaf. It provides a corrosion-resistant and non-conductive alternative to steel or wood frames in commercial, residential, and industrial environments. Profiles can be customized in size, surface finish, and color to match specific wall systems and door types.
Key Product Facts
- Material: Glass fiber reinforcement in a thermosetting resin matrix.
- Profile construction: Straight frame sections are combined with separately assembled corner joints and hardware positions.
- Surface finish: Smooth or textured base surface; color can be achieved by resin pigmentation or painting.
- Electrical insulation: FRP is non-conductive, which can be an advantage in certain installations.
- Customization: Frame dimensions, wall thickness, and hardware positions can be tailored to project requirements.
Material & Construction
The frame is manufactured from glass fiber reinforcement embedded in a thermosetting resin. Straight sections are produced as continuous profiles, which are then cut and assembled to the required frame dimensions. Corner joints and hardware cutouts are machined after the profiles are formed, then joined to create the complete frame.
Surface color can be achieved in two ways: by pigmenting the resin during production, or by applying paint after fabrication. Both methods allow a range of colors. If a specific finish or color is required, it should be specified during inquiry. Fire-retardant resin formulations can be supplied for projects requiring specific fire performance ratings; the applicable standard should be stated.
Applications
Fiberglass door frames are used in industrial, commercial, and residential environments where corrosion resistance, electrical insulation, or reduced maintenance are important. Typical application areas include:
- Food and beverage processing plants
- Chemical manufacturing and storage facilities
- Pharmaceutical laboratories and cleanrooms
- Marine and port infrastructure
- Warehouses and logistics centers
- Hospitals and hygiene-critical buildings
- Water and wastewater treatment plants
- Residential buildings in coastal or high-humidity areas
- Educational and public-use commercial buildings
These applications reflect common usage of FRP door frames in general. Actual suitability for a specific project depends on load requirements, chemical exposure, humidity, and installation conditions.
Selection Considerations
When selecting a fiberglass door frame, the following variables should be evaluated based on project-specific conditions:
- Load requirements: Load capacity depends on profile dimensions, wall thickness, and the type of door (single, double, or high-traffic). Provide the expected door weight and usage frequency for accurate sizing.
- Resin system: The resin can be selected based on chemical exposure. Polyester is common; vinyl ester may be considered for stronger chemical environments. Provide chemical exposure details for resin recommendation.
- Surface finish and color: Smooth or textured surfaces are available. Color can be integrated by resin pigmentation or applied by painting after fabrication. Specify the preferred method and color during inquiry.
- Fire performance: If fire-retardant properties are needed, specify the relevant standard so the appropriate resin grade can be considered.
- Customization: Frame dimensions, profile shape, and hardware positions can be customized. Provide drawings or specific requirements for quotation.
- Installation conditions: Frames can be integrated with concrete, composite panels, metal partitions, or drywall. Confirm the wall system to ensure proper fit and anchoring.
- Field modification: Cutting or drilling the FRP profile may expose glass fibers and affect corrosion resistance. Any field modifications should be sealed with a compatible resin to restore the surface barrier.
Technical Specifications
Standard and customizable specification options include:
- Material: FRP/GRP composite (glass fiber + thermosetting resin)
- Profile construction: Straight sections assembled with separate corner joints
- Surface finish: Smooth or textured; painting available
- Color options: Resin pigmentation or painted finish; standard and custom colors
- Dimensions: Custom thickness, width, and jamb depth
- Load capacity: Configuration dependent; determined by profile dimensions, reinforcement, and support conditions
- Chemical resistance: Varies with resin type; provide chemical exposure details for resin recommendation
- Fire performance: Optional fire-retardant resin grades; specify required standard
- Installation compatibility: Can be designed for concrete, composite panel, metal, or drywall systems
For project-specific load calculations, dimensional drawings, or material certificates, contact the engineering team with door type, dimensions, and environmental conditions.
FAQ
Q1: Can fiberglass door frames replace steel in industrial applications?
FRP frames can be used as an alternative to steel in many corrosive or electrically sensitive environments. Load capacity depends on the specific profile and must be verified for each application. Provide the door weight and traffic conditions for evaluation.
Q2: Are fiberglass frames resistant to chemicals?
Chemical resistance depends on the resin system. Polyester resin provides resistance to many common chemicals; vinyl ester may be recommended for stronger acids or solvents. Provide the chemical exposure details for resin selection.
Q3: Can the frame color be painted?
Yes, the surface can be painted after fabrication. Alternatively, color can be integrated into the resin during production. Specify the preferred method and color during inquiry.
Q4: Can frames be customized?
Yes, custom dimensions, profiles, and hardware positions can be produced based on project requirements. Provide drawings or specification details for quotation.
Q5: Are these frames suitable for residential use?
Yes, FRP door frames can be used in residential buildings, particularly in coastal or high-humidity environments. The specific profile and finish should be selected based on the location and design requirements.
Engineering Inquiry
HotFRP supplies FRP door frames for industrial, commercial, and residential projects. Engineering support is available for profile selection, load calculations, and resin recommendations. To request technical drawings, material documentation, or a quotation, please provide the following information:
- Door type and dimensions (single or double)
- Wall system and installation method
- Expected load and usage frequency
- Chemical exposure and ambient conditions
- Surface finish and color preference
- Fire performance requirements, if any
This information allows our team to prepare a tailored proposal based on the project conditions.
