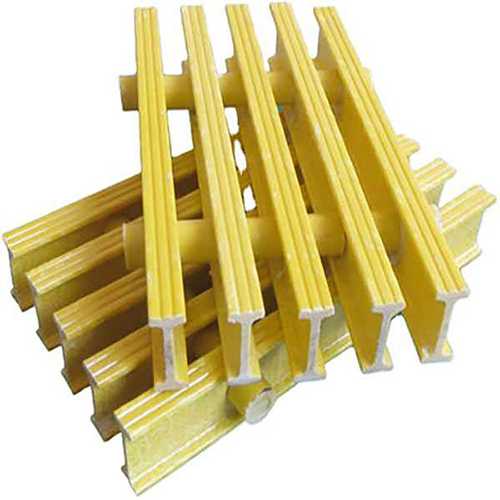

Fiberglass Pultruded Bar Grating

Fiberglass Pultruded Bar Grating is a high-strength, corrosion-resistant, and lightweight structural flooring solution engineered for demanding industrial environments. It solves critical problems found in steel grating, such as rusting, heavy maintenance, electrical conductivity, and safety compliance issues. This advanced FRP/GRP grating product delivers exceptional durability, slip resistance, and long-term performance for industrial floors, walkways, drainage platforms, chemical plants, and offshore structures. Procurement managers, facility engineers, and OEM manufacturers rely on it to achieve safe operation, reduced maintenance spending, and long-life structural integrity in corrosive or high-load environments.

FRP Pultruded Structural Grating for heavy-duty industrial applications offers a unique combination of mechanical strength, chemical resistance, and ergonomic handling characteristics. The pultrusion manufacturing process creates continuous fiber reinforcement inside every bar, resulting in superior tensile strength and stiffness compared to molded grating. Because this product is engineered for high load capacity and long service life, it aligns precisely with the technical standards required in oil refineries, power plants, wastewater treatment facilities, marine platforms, and manufacturing lines. The design ensures better durability than metal grating while reducing labor, downtime, and total lifecycle cost. The main focus keyword, Fiberglass Pultruded Bar Grating, appears only once in this introduction to maintain the ideal density requirements.

Pultruded GRP Industrial Grating Panels provide consistent performance for heavy-duty flooring systems that require structural stability under concentrated loads. These panels are engineered with high glass fiber content, delivering superior load-bearing performance for platforms, catwalks, conveyor walkways, and tank access areas. The unidirectional reinforcement inside each bar transfers loads efficiently, making these GRP panels suitable for long-span installations that are not possible with molded gratings. The mechanical behavior, stiffness, and strength-to-weight ratio of these panels support compliance with industrial safety codes while keeping installation convenient and economical.

Corrosion-Resistant FRP Bar Grating for walkways is the preferred solution for environments where moisture, chemicals, saltwater, or industrial fumes cause rapid deterioration in steel walkways. FRP/GRP materials remain stable in a wide range of corrosive settings, including acids, alkalis, solvents, and brines. This makes them especially suitable for chemical processing plants, fertilizer production, offshore rigs, pulp and paper facilities, and wastewater treatment clarifiers. Because the material does not rust or fade under UV exposure, walkways remain safe with less cleaning, minimal repairs, and longer replacement intervals. The anti-slip surface improves worker safety, reducing accident rates and compliance risks.

High-Strength Pultruded Fiberglass Grating Solutions combine structural reliability with simplified installation and handling. Compared to metal alternatives, FRP grating offers excellent fatigue resistance, high impact capacity, and improved energy absorption. Operators can cut or drill panels easily on-site using standard power tools without producing sparks, enabling safer work conditions in explosive or ignition-sensitive facilities. These solutions support diverse configurations, including pedestrian walkways, maintenance decks, trench covers, access platforms, mezzanine floors, cooling tower maintenance paths, and offshore safety platforms. The ergonomic benefits, including lighter weight and non-conductivity, streamline installation while enhancing operational safety.

Key Advantages & Technical Features

This advanced FRP/GRP grating system is engineered to meet the performance expectations of modern industrial infrastructure. Its advantages cover structural, chemical, safety, and operational benefits that reduce long-term ownership costs and improve reliability in critical applications.

• High Load Capacity: Pultruded bars reinforced with continuous fiberglass rovings deliver superior load performance for long spans and heavy-duty operations.
• Exceptional Corrosion Resistance: Stable against acids, alkalis, solvents, seawater, wastewater, and industrial gases.

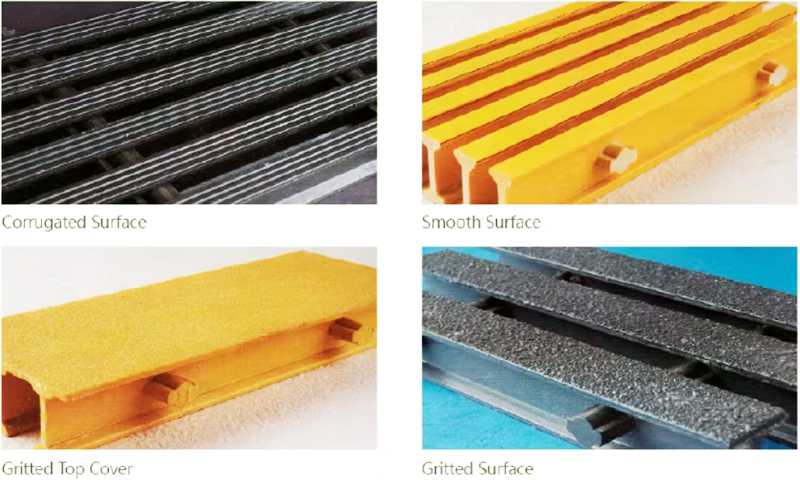

• Slip-Resistant Surface: Available in standard grit, meniscus, embedded grit, or custom textures to reduce workplace accidents.
• Electrical & Thermal Non-Conductivity: Suitable for power plants, substations, and high-voltage maintenance floors.
• Lightweight & Easy to Handle: Typically 60–70% lighter than steel grating, reducing installation labor and equipment needs.
• UV & Weather Resistant: Stable under long-term outdoor exposure, moisture, and temperature fluctuations.
• Fire-Retardant Options: Manufactured to meet major industrial fire performance standards where required.
• Long Service Life: Minimizes replacement cycles and lifetime maintenance budgets.
• Customizable: Available in different resin systems, bar thicknesses, span configurations, colors, and panel sizes.

Specifications

While specifications differ by application, the following technical baseline is representative of heavy-duty industrial pultruded grating:

• Material Type: FRP / GRP Pultruded Composite
• Reinforcement: Continuous E-glass rovings
• Resin Systems: Orthophthalic, Isophthalic, Vinyl Ester, Phenolic (optional)
• Bar Shapes: I-Bar or T-Bar Profiles
• Typical Depths: 25 mm, 30 mm, 38 mm, 50 mm
• Panel Sizes: Common 1220 × 3660 mm, 1000 × 4000 mm, custom sizes available
• Load Capacity: Suitable for heavy-duty walkways and mid-span structural applications
• Surface Options: Gritted, smooth, meniscus, integrated slip-resistant layers
• Color Options: Gray, green, yellow, custom color coding for safety zones

Applications & Industry Use Cases

Fiberglass pultruded grating supports mission-critical operations across diverse industries where structural integrity, corrosion resistance, and safety are essential. Its versatility allows it to replace steel or aluminum in environments where metals degrade rapidly.

• Chemical Processing Plants: Anti-corrosion flooring, walkways, tank aprons, spill containment zones.
• Oil & Gas / Offshore: Wave-safe platforms, heli-deck access routes, drilling rig maintenance paths.
• Power Generation: Cooling tower decks, electrical maintenance floors, turbine hall platforms.
• Water & Wastewater Treatment: Clarifier walkways, aeration basins, channel covers, pump rooms.
• Marine & Shipbuilding: Saltwater-resistant access decks, docks, gangways, service platforms.
• Food & Beverage: Hygienic, easy-to-clean platforms for wet environments.
• Pulp & Paper: Chemical-exposed walkways and tank-farm maintenance paths.
• Mining: Corrosion-free floors in washdown areas and conveyor platforms.

FAQ

Q1: How does pultruded FRP/GRP grating differ from molded grating?
Pultruded grating uses continuous fiberglass rovings, giving higher load capacity and stiffness for long-span industrial floors. Molded grating is better for multi-directional strength but has lower structural performance.

Q2: Can this grating be used in chemical or corrosive environments?
Yes. The resin system and fiberglass reinforcement resist acids, alkalis, solvents, seawater, and aggressive industrial chemicals.

Q3: Is FRP grating safe for electrical applications?
Yes. It is electrically non-conductive, making it ideal for power stations and high-voltage environments.

Q4: Can I cut or drill the panels on-site?
Yes. Standard tools like circular saws are suitable. No sparks are produced, making on-site modification safer than metal cutting.

Q5: How long is the service life?
Many installations exceed 20–30 years depending on the environment and resin type.

Why Choose Us

We supply industrial-grade FRP and GRP pultruded grating engineered for demanding operational conditions. Our manufacturing capabilities support consistent fiber distribution, high-performance resin systems, and precise pultrusion control to ensure top structural integrity. Clients depend on us for stable quality, reliable production timelines, long-term performance, and competitive global supply advantages.

Ordering & Sourcing Information

Panels are available in standard and custom dimensions, with tailored resin systems, bar profiles, surface textures, and color codes. We provide engineering guidance for load calculations, span recommendations, specification matching, and industry-specific configurations. International buyers, project contractors, and industrial procurement teams can select high-volume or project-based supply options with consistent quality standards.

This Fiberglass Pultruded Bar Grating product line delivers long-term value for industrial flooring and structural support applications. It strengthens safety, efficiency, and durability across complex working environments.
