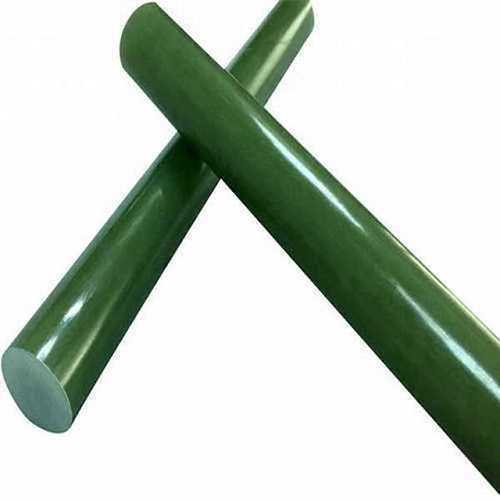

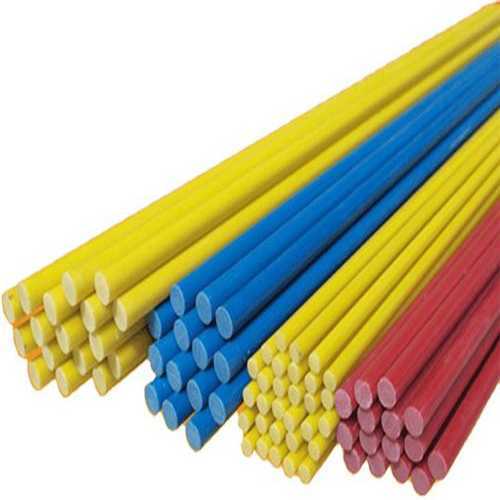

Fiberglass Rod Overview
A fiberglass rod is a solid cylindrical profile made from continuous glass fiber reinforcement embedded in a thermosetting resin matrix. It is used in structural, electrical, and industrial applications where corrosion resistance, non-conductivity, and high tensile strength are important. The rod is produced by pultrusion, giving it consistent dimensions and unidirectional fiber alignment along its length.
Product Definition
A fiberglass rod is a pultruded composite member with a solid round cross-section. It is designed to provide tensile strength, electrical insulation, and resistance to moisture and chemicals in applications such as structural reinforcement, insulating components, and OEM parts.
Key Product Facts
- Material: glass fiber reinforced polymer (FRP / GRP)
- Manufacturing process: pultrusion
- Cross-section: solid round rod
- Standard diameters: 2 mm to 50 mm (custom sizes available)
- Standard lengths: 1 m to 6 m, continuous spools for small diameters
Material & Construction
Fiberglass rods are manufactured by the pultrusion process, in which continuous glass fiber rovings are pulled through a resin bath and then through a heated die to form a straight, high-strength profile. This method orients the glass fibers along the length of the rod, providing consistent tensile properties and dimensional accuracy.
The resin matrix protects the fibers from moisture, chemicals, and UV exposure. Standard resin options include polyester for general use, vinyl ester for improved chemical resistance, and epoxy for higher mechanical performance. Rods can be supplied with a smooth, matte, or grit-coated surface depending on the application.
Applications
Fiberglass rods are used in a wide range of industrial and commercial settings where corrosion, electrical conductivity, or weight are concerns. Typical application areas include electrical utilities (insulating poles, cable supports), telecommunications (duct supports, antenna elements), construction (reinforcement, formwork supports), marine structures, agriculture (fence posts, greenhouse frames), and OEM component manufacturing.
The rods can be cut, drilled, or bonded using standard FRP fabrication methods. Non-conductive properties make them suitable for areas near energized equipment.
Selection Considerations
When specifying a fiberglass rod, the following factors typically influence design and performance:
- Diameter and length: The required cross-section and length depend on the mechanical load and installation geometry. Larger diameters provide higher tensile and flexural strength.
- Resin type: Resin selection affects corrosion resistance, temperature tolerance, and electrical properties. Options include polyester, vinyl ester, and epoxy.
- Surface finish: Smooth, matte, or grit-coated surfaces can be specified for bonding, handling, or slip resistance.
- Environmental exposure: For outdoor use, UV-stabilized resin systems are available. For chemical exposure, the resin should be matched to the specific chemicals present.
- Electrical requirements: Non-conductive and dielectric properties depend on resin and fiber content. For high-voltage applications, specific resin formulations may be required.
Technical Specifications
| Property | Standard Options / Values |
|---|---|
| Material | Glass fiber reinforced polymer (FRP / GRP) |
| Manufacturing process | Pultrusion |
| Diameter range | 2 mm to 50 mm (custom sizes available) |
| Length options | 1 m to 6 m; continuous spools for small diameters |
| Glass fiber type | E-glass standard; S-glass for higher performance |
| Resin options | Polyester, vinyl ester, epoxy |
| Surface finish | Smooth, matte, grit-coated, UV-protected |
| Color options | Yellow, white, black, green, red, custom RAL colors |
Tensile strength, density, and temperature limits are configuration dependent and vary with fiber content and resin system. Project-specific data can be provided upon request.
Frequently Asked Questions
Can fiberglass rods replace steel for load-bearing applications?
Fiberglass rods offer high tensile strength and are much lighter than steel. They are suitable for many structural and reinforcement applications, especially where corrosion or electrical insulation is required. Load capacity must be evaluated for each specific configuration and support condition.
Are these rods safe to use near high-voltage equipment?
The non-conductive properties of FRP make fiberglass rods suitable for use near energized equipment. However, the specific dielectric strength depends on resin and fiber content, and project-specific requirements should be reviewed.
Do fiberglass rods last outdoors?
Yes, UV-stabilized resin systems are available for prolonged outdoor exposure. The selected resin type influences long-term color retention and surface condition under sunlight.
Are custom resin or fiber options available?
Yes, resin type, glass fiber type, surface finish, and color can be specified according to project requirements. Engineering review may be needed for non-standard combinations.
How much maintenance do fiberglass rods require?
No painting or surface treatment is required. The material resists corrosion and weathering. Routine inspection and cleaning as needed are generally sufficient.
Related Products & System Components
Fiberglass rods are often used alongside other FRP structural profiles and components. Common related items include:
- FRP structural shapes such as channels, angles, and tubes
- Fiberglass grating panels for platforms and walkways
- Fastening hardware and connection accessories
For compatible products and system-level recommendations, contact our engineering team with your project requirements. You may also review our Fiberglass Purlin or Fiberglass Pultruded Bar Grating pages for related FRP solutions.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, please submit a request. Providing the following information helps our team prepare a more relevant response:
- Required diameter and length
- Expected tensile or flexural loads
- Environmental exposure (chemical, UV, temperature)
- Electrical insulation requirements
- Surface finish preference
- Quantity and target delivery schedule
