Plastic grass grids—also called plastic grid pavers, grass reinforcement grids, or permeable grass pavers—are modular ground reinforcement products made from high-density polyethylene (HDPE). They consist of interlocking open-cell panels designed to stabilize grass or gravel surfaces while allowing water infiltration and root growth. These grids are used in areas that require load-bearing capacity for pedestrian or vehicular traffic without replacing green space with impermeable paving. Performance depends on panel design, base preparation, infill type, and traffic conditions.
What Is a Plastic Grass Grid?

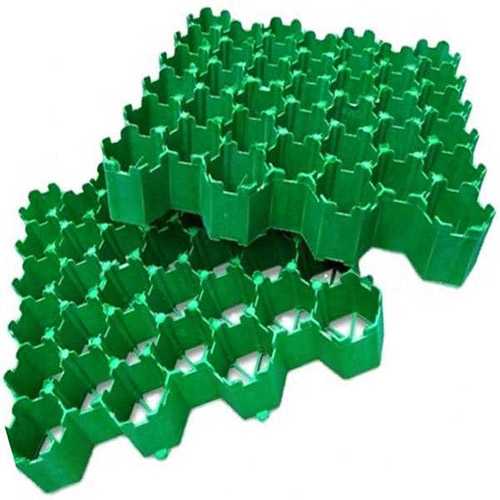

A plastic grass grid is a modular HDPE panel with an open-cell structure, designed to be laid over a prepared base and filled with grass or aggregate to create a reinforced, permeable ground surface. It provides structural support while maintaining natural drainage and vegetation growth.
Key Product Facts
Material: High-density polyethylene (HDPE).
Panel structure: Open-cell, interlocking grid.
Typical use: Ground reinforcement for grass or gravel surfaces in traffic areas.
Permeability: Allows water to pass through to the sub-base and soil.
Material & Construction
The grid panels use high-density polyethylene (HDPE) as the base material. HDPE offers inherent resistance to moisture, temperature variation, and outdoor exposure, without requiring surface coatings or treatments. The open-cell geometry interlocks between panels, creating a continuous surface that distributes applied loads across a wider area.
Structural performance depends on panel geometry, cell wall thickness, and the quality of base preparation. The focus of this page is on material composition and design characteristics relevant to specification.
Applications
Plastic grass grids are used in projects where a stable, permeable surface is required without full hard paving. Common application areas include:

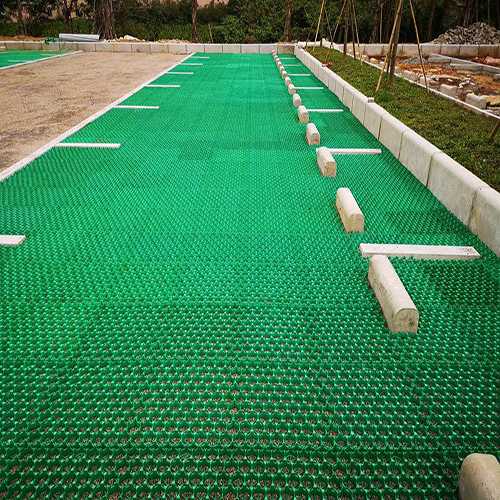

Overflow and temporary parking areas
Fire access lanes and emergency vehicle routes
Commercial and residential driveway reinforcement
Public parks, walkways, and landscaped spaces

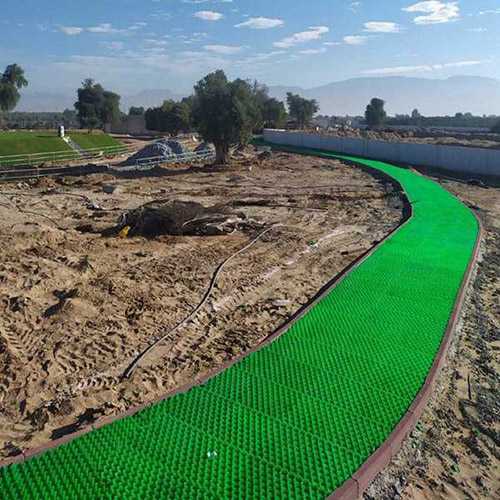

Utility access routes and service paths
Erosion control on slopes or high-traffic green areas
These are common industry application areas; project suitability depends on expected loads, base conditions, and drainage requirements.
Selection Considerations
Engineers and specifiers evaluating plastic grass grids typically consider the following variables:
Panel cell size and wall thickness relative to expected loads
Base preparation and sub-base thickness for load distribution
Infill material (grass, gravel, or a combination) and maintenance needs
Drainage requirements and soil permeability
UV exposure and long-term weathering conditions
Traffic type and frequency (pedestrian, light vehicle, heavy vehicle)
Installation area slope and erosion control needs
Final selection depends on project-specific calculations and site conditions. For load ratings or design support, contact our engineering team with your project details.
Technical Specifications
The table below outlines general material and design characteristics. Specific numeric values are not listed because they depend on panel configuration, base design, and infill type.
Typical characteristics of plastic grass grid
Characteristic
Description
Material type
High-density polyethylene (HDPE)
Panel structure
Open-cell, interlocking modular panels
Surface finish
Grass-filled or aggregate-filled (depending on application)
Load performance
Dependent on base preparation, panel design, and infill type
Permeability
Open cells allow vertical water movement
UV resistance
HDPE provides inherent resistance; long-term performance depends on exposure conditions
Color options
Commonly black; other colors may be available depending on production batch
For project-specific data such as compressive strength, load rating, or installation guidelines, please contact our engineering team. Exact values must be verified for the actual configuration offered.
Standards & References
Common reference standards for plastic grid systems include:
ASTM D638 — Standard Test Method for Tensile Properties of Plastics
ASTM D695 — Standard Test Method for Compressive Properties of Rigid Plastics
ISO 178 — Plastics – Determination of flexural properties
Additional standards may apply depending on regional requirements and project specifications.
Frequently Asked Questions

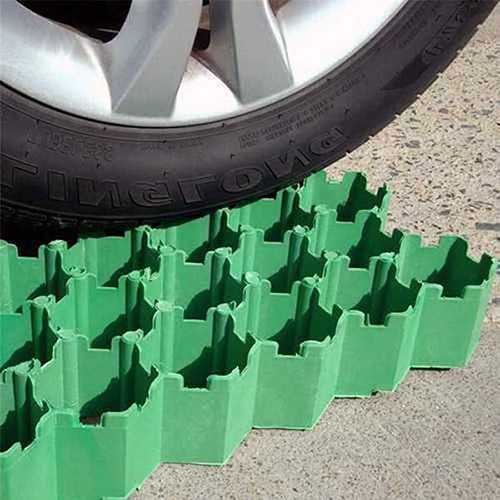

Can the plastic grass grid support regular vehicle traffic?
When installed on a properly engineered base, the grid can support routine vehicle movement. The load capacity depends on the panel design, base layer thickness, and infill type. Heavy or repeated traffic may require additional sub-base preparation.
Does the grid interfere with grass growth?
The open-cell structure allows grass roots to grow through the grid and into the soil below. Healthy growth depends on soil quality, sunlight, and moisture levels. The grid itself does not prevent vegetation establishment.
Is the system suitable for long-term outdoor exposure?
HDPE is generally resistant to moisture, UV radiation, and temperature variation. Long-term performance depends on the specific material formulation and exposure conditions, but the product is designed for continuous outdoor use in typical climates.
How is the grid installed?
Installation typically involves preparing a compacted sub-base, placing the interlocking panels, filling them with grass or aggregate, and lightly compacting the infill. Detailed installation instructions should be obtained from the supplier for specific project requirements.
Can the grid be used with gravel instead of grass?
Yes, the grid can be filled with gravel or aggregate to create a stable, permeable surface suitable for utility access or temporary traffic routes. The choice of infill depends on the intended use and drainage requirements.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, reach out with your project details. The following information helps our team prepare a more relevant response:
Required panel dimensions and cell configuration
Expected traffic type and frequency
Base preparation details (soil type, sub-base thickness)
Drainage and permeability requirements
Infill material preference (grass, gravel, or other)
