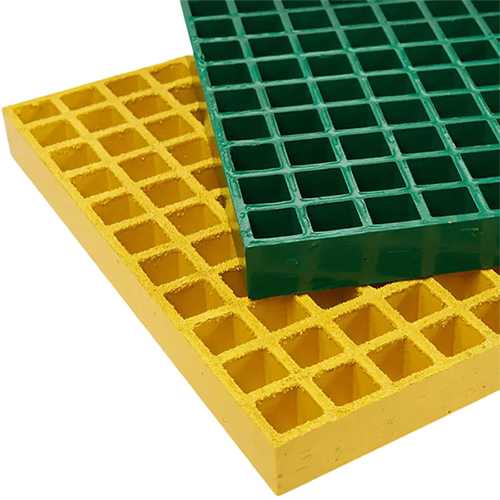

Fiberglass Molded Open Mesh Grating Overview
Fiberglass molded open mesh grating, also known as molded FRP grating or open mesh fiberglass grating, is a one-piece panel made from continuous glass fiber reinforcement and a thermosetting resin matrix. It is used for industrial walkways, platforms, and access areas where corrosion resistance and low maintenance are important. The open mesh pattern allows liquids and debris to pass through, while the molded construction provides even load distribution across the panel.
What Is Fiberglass Molded Open Mesh Grating?
Fiberglass molded open mesh grating is a molded FRP/GRP grid panel designed to create safe walking and working surfaces in industrial environments. The open mesh structure offers drainage, light transmission, and airflow while supporting pedestrian and light equipment traffic. Its one-piece molded construction has no separate joints or welds, giving consistent mechanical properties throughout the panel. It is often specified where metal grating would corrode or add unnecessary weight.
Key Product Facts
- Material: Glass fiber reinforced polymer (FRP / GRP)
- Manufacturing process: Molded one-piece construction
- Mesh configuration: Open mesh with square or rectangular openings
- Standard panel thicknesses: 25 mm, 30 mm, 38 mm, 50 mm
- Surface options: Concave, grit-topped, smooth, or covered plate
Material & Construction
Fiberglass Molded Open Mesh Grating is manufactured by a molding process in which continuous glass fiber rovings are saturated with a thermosetting resin system and formed into an integrated grid panel. This method creates a one-piece structure without separate joints or welds, providing consistent mechanical properties across the panel.
The open mesh pattern allows liquids, gases, and light to pass through, which helps keep surfaces clean and dry in many industrial settings. Standard resin options include polyester, vinyl ester, and flame-retardant formulations. The selected resin system influences the panel’s corrosion resistance, fire performance, and temperature tolerance.
Typical Applications
FRP molded gratings are widely used in industrial settings where corrosion resistance, non-conductivity, and low maintenance are design priorities. Common installation areas include chemical processing plants, wastewater treatment facilities, offshore platforms, power generation stations, food and beverage plants, and marine structures.
Open mesh grating is often specified for elevated walkways, inspection platforms, mezzanines, and equipment access areas because the grid design provides secure footing and effective drainage.
Selection Considerations
When selecting Fiberglass Molded Open Mesh Grating, the following factors typically influence performance and suitability:
- Panel thickness and span: Load capacity depends on panel thickness, support spacing, and resin system. Thicker panels or shorter spans are generally used for higher loads.

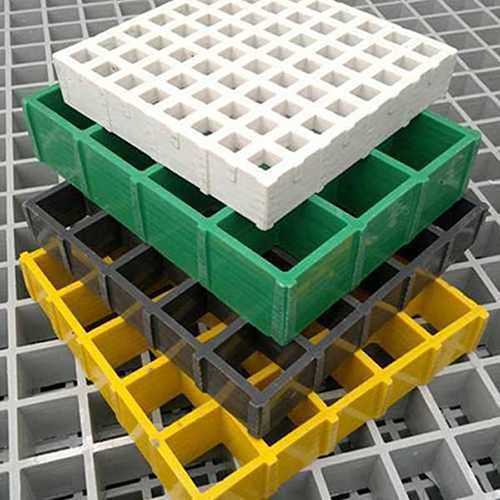

- Mesh opening size: Standard mesh configurations include 38×38 mm and 25×25 mm. Smaller openings may be preferred where small tools or objects are handled.
- Resin type: Resin selection affects corrosion resistance, fire performance, and UV stability. Options include polyester, vinyl ester, and halogen-free flame-retardant systems.
- Surface finish: Grit-topped surfaces provide additional slip resistance in wet or oily areas. Concave and smooth finishes are available for easy cleaning or specific traction requirements.
- Field modifications: Panels can be cut on site with standard FRP cutting tools. After cutting or drilling, the exposed glass fibers must be re-sealed with a compatible resin topcoat to maintain corrosion resistance.
Technical Specifications
| Property | Standard Options / Values |
|---|---|
| Material | Fiberglass reinforced polymer (FRP / GRP) |
| Manufacturing process | Molded one-piece construction |
| Mesh configuration | 38×38 mm, 25×25 mm, 50×50 mm |
| Panel thickness | 25 mm, 30 mm, 38 mm, 50 mm |
| Resin options | Polyester, vinyl ester, flame-retardant formulations |
| Surface options | Concave, grit-topped, smooth, covered plate |

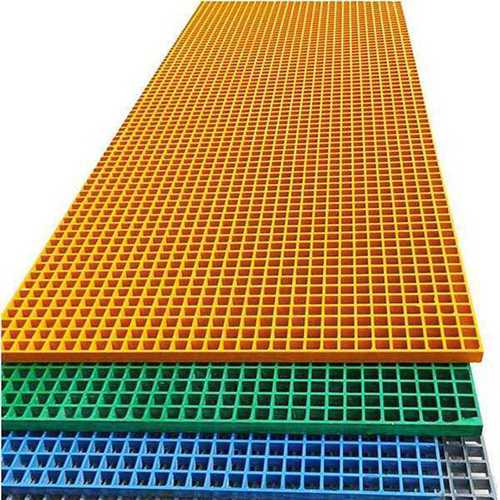

| Color options | Yellow, grey, green; custom colors available |
Actual load capacity and fire performance depend on the specific panel configuration, resin system, and operating conditions. For project-specific data, contact our engineering team.
Frequently Asked Questions
How does fiberglass molded grating compare to steel grating?
Fiberglass molded grating is lighter, non-conductive, and does not rust. In corrosive environments, FRP gratings usually need less maintenance than steel. Load-bearing capacity, however, depends on the panel configuration and support structure.
Can this grating handle heavy industrial loads?
Load capacity depends on panel thickness, span between supports, and resin/fiber configuration. For higher load requirements, thicker panels or shorter support spans can be specified. Project-specific load calculations can be performed when engineering details are provided.
Is the material suitable for electrical or explosive environments?
FRP is non-conductive, which can reduce certain electrical hazards. Flame-retardant resin formulations are available for projects requiring fire performance ratings. Suitability for explosive atmospheres depends on the specific classification and applicable regulations.
Does the material degrade under UV exposure?
UV-stabilized resin systems are available for prolonged outdoor exposure. The selected resin type influences long-term color retention and surface condition under sunlight.
Can panels be cut on site?
Yes, panels can be cut using standard FRP cutting tools. After cutting, the factory-sealed edge is opened, so exposed glass fibers must be re-sealed with a compatible resin topcoat to maintain corrosion resistance and prevent moisture ingress.
Related Products & System Components
Fiberglass Molded Open Mesh Grating is typically installed as part of a complete flooring or platform system. Common related components include:
- FRP support beams and structural framing for grating mounting
- Handrails and guardrail systems for elevated platforms
- Fastening hardware, hold-down clips, and connection accessories
For compatible products and system-level recommendations, contact our engineering team with your project requirements. You may also review our Molded FRP Grating selection guide or the FRP Grating Systems overview for related product families.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, please submit a request. Providing the following information helps our team prepare a more relevant response:
- Panel dimensions and required thickness
- Support spacing and expected loads
- Type of traffic (pedestrian, cart, or vehicle)
- Chemical exposure and ambient temperature range
- Surface finish preference (gritted, concave, or smooth)
- Fire performance requirements, if any
- Color preference and quantity required
