Product Overview

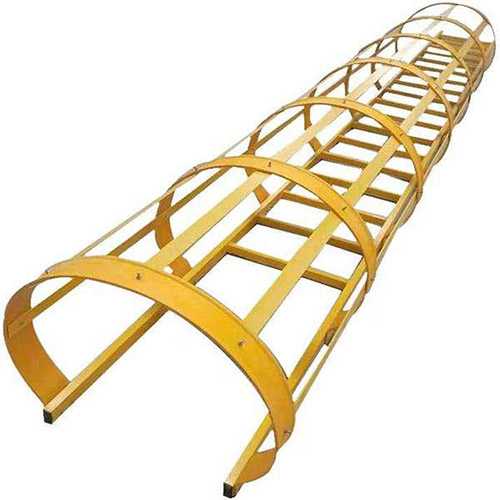

Fiberglass cage ladder is a fixed vertical access system made from FRP/GRP composite structural profiles, with a safety cage attached to the climbing section. It is used to provide vertical access to platforms, roofs, tanks, and equipment in industrial environments. The ladder is available in modular sections, with side rail and cage dimensions specified per project. Typical industry applications include chemical processing, wastewater treatment, marine structures, and electrical facilities. Load capacity and dimensional details depend on the specific configuration and installation conditions.
Product Definition
A fiberglass cage ladder is a fixed ladder constructed from fiberglass-reinforced polymer (FRP/GRP) structural profiles, fitted with a cage or back guard along the climbing length. It is designed for permanent installation at industrial sites where vertical access is required and where corrosion resistance, electrical insulation, or reduced maintenance are beneficial. The ladder system includes side rails, rungs, cage rings, and connecting hardware, supplied as modular sections for assembly on site.
Key Product Facts
- Material: FRP/GRP composite structural profiles for side rails, rungs, and cage components
- Rung type: ribbed or anti-slip surface profile for climbing traction
- Cage configuration: cage diameter and ring spacing are project-specified
- Electrical insulation: FRP is non-conductive, which can be an advantage in electrical installations
- Modular design: straight sections and cage components are supplied for on-site assembly
- All dimensions and resin systems are project-specified; no default configuration applies
Material & Construction
The ladder is constructed from FRP/GRP composite profiles composed of glass fiber reinforcement embedded in a thermosetting resin matrix, typically polyester or vinyl ester. The resin matrix provides corrosion resistance and binds the fibers, while the glass fibers contribute to the structural strength of the side rails, rungs, and cage supports. Resin selection affects chemical resistance and temperature performance; vinyl ester may be recommended for stronger chemical environments.
Fire-retardant resin formulations can be supplied for projects requiring specific fire performance ratings. UV-stabilized resin or surface protection is available for long-term outdoor exposure. If these properties are required, the relevant standard or exposure condition should be specified during inquiry.
Field cutting or drilling of FRP profiles may expose glass fibers and affect corrosion resistance; proper edge sealing with a compatible resin is recommended after any modification. Performance in mixed chemical environments or cycling temperatures should be evaluated based on actual project conditions.
Applications

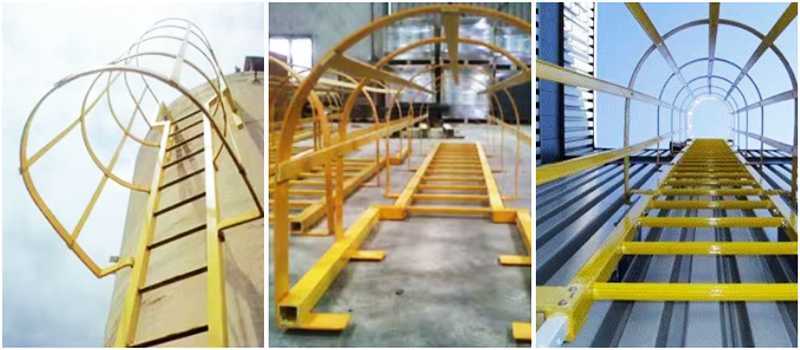

Fiberglass cage ladders are commonly used in industrial and infrastructure environments where vertical access is needed and where corrosion resistance, electrical insulation, or reduced maintenance are important. Typical industry applications include:
- Chemical processing plants
- Oil and gas facilities
- Marine and offshore platforms
- Wastewater treatment plants
- Electrical substations and utility structures
- Food and beverage production areas
- Mining and metal processing facilities
- Cooling towers, tanks, silos, and roof access points
These applications reflect general industry usage of FRP cage ladders. Actual suitability for a specific project depends on access height, load requirements, chemical exposure, and installation conditions.
Load Capacity
No standard or published load capacity values are provided for this product. The allowable load for any given ladder configuration depends on:
- Side rail dimensions and profile properties
- Rung spacing and connection details
- Material properties of the resin system
- Support conditions and anchoring method
- Total climbing height and presence of intermediate landings
Any load values presented in project documentation apply only to the analyzed configuration and the governing design conditions. Results from one project should not be extrapolated to different heights, rail dimensions, or support arrangements.
Selection Considerations
When selecting a fiberglass cage ladder, the following variables should be evaluated based on project-specific conditions:
- Climbing height: Ladder sections and cage components can be supplied in modular lengths. Total height, number of intermediate landings, and rest platforms should be determined by the installation location.
- Load requirements: Load capacity depends on side rail dimensions, rung spacing, material properties, and connection details. Provide the expected maximum user load and any additional loads for accurate sizing.
- Resin system: Polyester resin is commonly used; vinyl ester may be recommended for stronger chemical exposure. Provide the chemical environment for resin selection.
- Safety cage configuration: Cage diameter and ring spacing can be adjusted. Local safety regulations may specify minimum cage height, offset, and geometry.
- Electrical insulation: FRP is non-conductive; for high-voltage environments, confirm the dielectric requirements with the engineering team.
- UV exposure: For outdoor installations, UV-stabilized resin or surface protection may be recommended.
- Installation and field modification: Field cutting or drilling of FRP profiles may expose glass fibers and affect corrosion resistance. Proper edge sealing with compatible resin is recommended after any modification.
Technical Specifications
The following specification options are commonly available; actual availability and exact dimensions depend on project requirements and production capabilities. All values are subject to confirmation by the engineering team.
- Material: FRP/GRP composite profiles (glass fiber reinforcement with thermosetting resin matrix)
- Side rail dimensions: Options commonly include heights in the range of 85–100 mm; other sizes may be available
- Rung type: Ribbed or anti-slip surface
- Cage diameter: Options commonly range from approximately 650 mm to 700 mm; custom diameters may be available
- Cage ring spacing: Options commonly range from approximately 300 mm to 400 mm; adjustable based on project requirements
- Color options: Yellow, grey, and custom colors may be available, subject to resin system
- Load capacity: Configuration dependent; determined by profile dimensions, material properties, and support conditions
- Fire performance: Fire-retardant resin grades available; specify required standard and class
- UV protection: Optional UV-stabilized resin or surface layer for outdoor use
- Safety standard alignment: Design can be aligned with common fixed ladder standards when specified; final compliance depends on configuration and local requirements
For project-specific load calculations, dimensional drawings, or material certificates, contact the engineering team with the access height, expected load, and environmental conditions.
Standards & References
Design of fixed ladders and cage systems may reference applicable safety standards, depending on the project location and governing authority. Commonly cited references include:
- OSHA 1910.28 — Duty to Have Fall Protection and Falling Object Protection (fixed ladder requirements)
- EN ISO 14122-4 — Safety of Machinery: Permanent Means of Access to Machinery (Part 4: Fixed Ladders)
- ASTM E84 — Standard Test Method for Surface Burning Characteristics of Building Materials
Reference to any standard does not imply certification or compliance unless explicitly stated in project documentation. The specific standard edition, test conditions, and acceptance criteria are determined by the project's governing code and specifications.
Frequently Asked Questions
Is the fiberglass cage ladder suitable for outdoor environments?
FRP cage ladders can be used outdoors. A UV-stabilized resin or surface protection is available for long-term exposure to sunlight. Performance depends on the resin system and environmental conditions; discuss the specific location with the manufacturer.
Does it meet industrial safety standards?
The ladder can be designed to align with common fixed ladder standards such as OSHA or EN ISO, depending on the configuration and local requirements. Specify the applicable standard and region during inquiry so the design can be checked accordingly.
Is the ladder electrically safe?
FRP is non-conductive, which can be an advantage near electrical equipment. For high-voltage environments, confirm the specific dielectric requirements with the engineering team to ensure suitability.
Can the ladder be customized for different heights?
Modular sections and cage components can be configured for different heights. Provide the required climbing height and landing details for quotation.
How long does it last in harsh chemical environments?
Service life depends on chemical exposure, resin system, UV exposure, and load conditions. Vinyl ester resin may be recommended for stronger chemical environments. A specific lifespan cannot be stated without project details.
Related Products & System Components
Fiberglass cage ladders are typically installed as part of a complete vertical access system. Common related components include:
- FRP platforms and walkways for landing areas
- Access covers and guardrail systems
- Mounting brackets, anchoring hardware, and connection components
For compatible products and system-level recommendations, contact our engineering team with your project requirements.
Engineering Inquiry
For technical data requests, height configuration, or project-specific drawings, please submit a Technical Data Request through our contact form. Provide the following information to help our team prepare a tailored response:
- Total climbing height and number of intermediate landings
- Expected maximum load and usage frequency
- Chemical exposure and ambient temperature range
- UV exposure and outdoor installation duration
- Applicable safety standards and local regulations
- Color and surface finish preferences
