Mining and mineral processing environments can combine chemical exposure, abrasive solids, mechanical loading, and persistent moisture. These conditions can affect material selection for walkways, platforms, stair treads, and other access areas. FRP is used in some of these applications because its material and configuration can be selected with specific chemical exposure, structural loading, and surface requirements in mind. This article explains where FRP is commonly considered in mining and mineral processing and which factors are important when evaluating a configuration. It is based on general industry knowledge and does not represent the performance of any single tested product configuration.

Key Environmental Conditions in Mining and Mineral Processing

Mining and mineral processing facilities can expose materials to several conditions at the same time:

  • Acidic mine drainage: oxidation of sulfide-bearing minerals in the presence of water and air can produce acidic drainage. Low-pH water can create a corrosive environment for exposed materials.
  • Chemical exposure: flotation reagents, leaching solutions, pH-control chemicals, and other process media can introduce additional chemical exposure in processing areas.
  • Abrasive slurries: ore particles, tailings, and process solids can wear exposed surfaces through repeated contact and movement.
  • Mechanical loading: walkways, platforms, and stair treads may be designed for pedestrian traffic, maintenance equipment, carts, or other defined loads.
  • Moisture and temperature variation: wet operating areas, humidity, and temperature changes can add further environmental considerations.

These conditions may occur together rather than separately. For example, a work platform near a processing area may be exposed to chemical splashes or mist while also experiencing repeated traffic and occasional slurry contact. Material selection should therefore consider the relevant exposure and loading conditions together.

Where FRP Is Used in Mining and Mineral Processing

FRP Grating

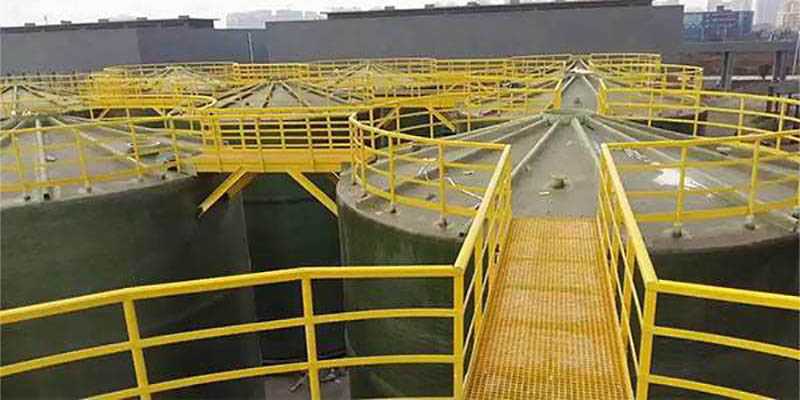

FRP grating is used in access areas such as walkways, operating platforms, and maintenance decks where the selected configuration is suitable for the required loading and environmental exposure. Grating selection involves more than material type alone; panel configuration, span, support spacing, connections, surface texture, and resin system can all affect the suitability of a particular application.

Where acidic drainage, process chemicals, or persistent moisture are present, the resin system should be reviewed against the chemicals and exposure conditions involved. See FRP grating for more information.

Pultruded Bar Grating

Pultruded bar grating is manufactured by forming continuous glass-fiber-reinforced profiles through a resin and forming process. Its directional reinforcement is relevant to applications where span and load direction are important considerations. As with other grating types, the appropriate configuration depends on the required load, span, support arrangement, and environmental conditions.

Pultruded bar grating may be considered for platforms, walkways, and other access areas where its structural form and surface configuration fit the application. Visit pultruded bar grating for product details.

Platforms and Stair Treads

FRP platforms and stair treads can be used in areas where access surfaces are exposed to moisture, chemical contact, or slurry splash. Surface texture is an important selection factor in areas where wet or contaminated walking surfaces are expected.

For mining and processing applications, the selection should consider the intended load, span, support arrangement, chemical exposure, surface configuration, and installation details rather than relying on material type alone.

Corrosion, Abrasion, and Laboratory Data

One important boundary in mining applications is the difference between a material property measured under a defined laboratory condition and performance under a combined field exposure. A chemical-resistance result obtained under controlled conditions does not by itself establish performance in a moving abrasive slurry.

Evidence and scope boundary: Laboratory data describe the specific specimen, configuration, test condition, and property that were evaluated. Where abrasive solids, chemical exposure, velocity, temperature, loading, or other factors act together, performance should not be inferred beyond the scope of the available evidence. Combined chemical and mechanical wear may require separate engineering evaluation.

This distinction is particularly relevant for slurry-handling areas. Abrasive particles can continuously wear an exposed surface while the material is also in contact with a chemical environment. The resulting exposure is different from a test that considers chemical contact or mechanical loading under a separate, controlled condition. For that reason, laboratory data should be interpreted within their stated scope rather than treated as a direct prediction of combined slurry performance.

Key Selection Factors for Mining Applications

Several factors should be considered when selecting FRP for mining and mineral processing applications:

  • Load and span: define the expected load, span, support spacing, and allowable deflection requirements for the application. The grating or platform configuration should be selected as a complete structural system rather than from panel thickness alone.
  • Resin system: review the chemicals present and the expected exposure conditions when selecting the resin system. A resin suitable for one chemical environment should not automatically be assumed to be suitable for another.
  • Grating or panel configuration: geometry, thickness, reinforcement arrangement, span, and support spacing all influence structural response and should be considered together.
  • Surface configuration: in wet or slurry-exposed areas, the selected surface texture should reflect the intended access conditions and maintenance requirements.
  • Support and connections: framing, support spacing, fastening, and installation details form part of the overall application and should be considered when assessing the selected configuration.
  • Combined exposure: where chemical contact and abrasive slurry occur together, the available evidence should be checked to determine whether it represents the actual operating condition.

These factors are interconnected. A grating configuration that is appropriate for a defined structural load may still require a different resin system or surface configuration when the chemical and abrasion environment changes. Conversely, chemical compatibility alone does not establish structural suitability.

Summary

FRP can be considered for mining and mineral processing access applications where chemical exposure, moisture, abrasion, and mechanical loading are relevant design factors. Common applications include grating, platforms, walkways, and stair treads. The selection process should consider resin system, structural configuration, load and span, support arrangement, surface configuration, and the actual operating environment together.

Where abrasive slurry is involved, chemical-resistance or mechanical-property data should be interpreted within the scope of the tested specimen and conditions. Combined field exposure should not be assumed to behave the same way as a single-factor laboratory condition without supporting evidence.
