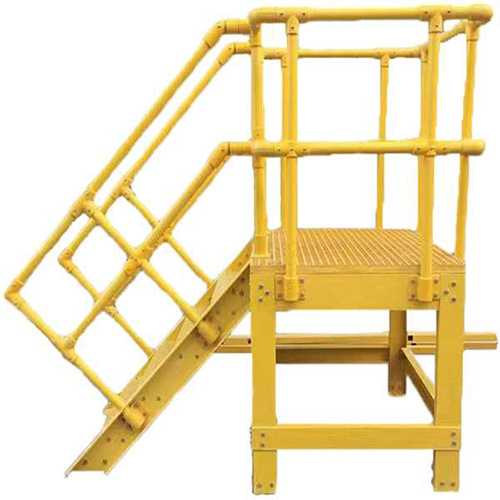

Fiberglass Platform Overview
A fiberglass platform is a structural access surface made from fiberglass reinforced polymer (FRP / GRP). It is used in industrial and commercial environments... Read More
A fiberglass platform is a structural access surface made from fiberglass reinforced polymer (FRP / GRP). It is used in industrial and commercial environments where corrosion resistance, low maintenance, and stable footing are important. The platform panels can be configured for different load requirements and are suitable for wet, humid, or chemically exposed locations.
Product Definition
A fiberglass platform is a load-bearing deck system constructed from FRP / GRP composite components. It provides a stable walking and working surface in areas where traditional steel or wood structures may deteriorate due to moisture, chemicals, or salt exposure.
Surface options: grit anti-slip or molded textured finish
Panel thickness options: 25 mm, 30 mm, 38 mm, 50 mm
Standard colors: yellow, gray, green, or custom industrial colors
Load classes: light, medium, and high-load configurations available
Material & Construction
The platform panels consist of continuous glass fiber reinforcement combined with a thermosetting resin matrix. This material combination gives the panels resistance to moisture, many chemicals, and salt spray. The composite does not rust or rot, which reduces the need for surface treatments over time.
Surface finishes can be specified to provide additional slip resistance in wet or oily conditions. The panels can be assembled with supporting structures made from matching FRP profiles or other compatible materials, depending on the project design.
Applications

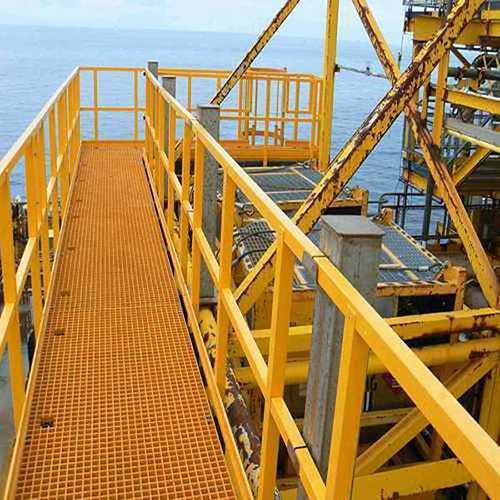

Fiberglass platforms are commonly installed in industrial settings where access and working surfaces are required. Typical application areas include chemical processing plants, water and wastewater treatment facilities, power generation stations, marine terminals, mining operations, and manufacturing workshops.

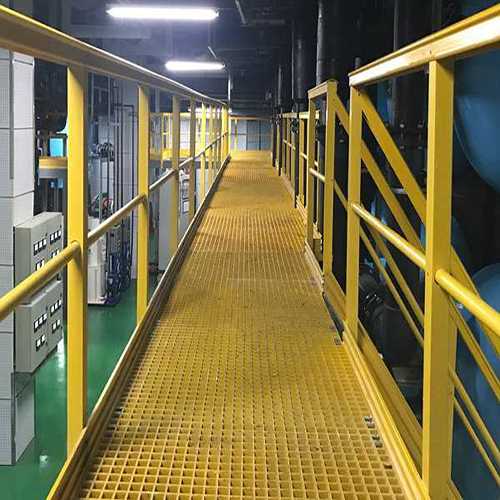

The platforms are suitable for elevated walkways, inspection decks, equipment access areas, and maintenance platforms in both indoor and outdoor environments.
Selection Considerations
When specifying a fiberglass platform, the following factors typically influence design and performance:
Load requirements: Panel thickness and support spacing must be selected according to expected live loads and traffic type. Engineering calculations should confirm the final configuration.
Environmental exposure: Resin system selection affects resistance to specific chemicals, UV radiation, and temperature extremes.
Surface finish: Grit or textured surfaces provide different levels of slip resistance. Smooth surfaces may be preferred where frequent cleaning is required.
Electrical properties: Non-conductive construction is available for areas where electrical isolation is needed.
Support structure: The platform design must be compatible with existing or planned support beams, columns, and connection hardware.
Technical Specifications
Standard product options for fiberglass platforms
Property
Standard Options / Values
Material
Glass fiber reinforced polymer (FRP / GRP)
Panel thickness
25 mm, 30 mm, 38 mm, 50 mm
Surface options
Grit anti-slip, molded textured finish
Color options
Yellow, gray, green, custom industrial colors
Load classes
Light, medium, high-load configurations
Electrical properties
Non-conductive options available
Actual load capacity, deflection limits, and chemical resistance are configuration dependent. Project-specific data can be provided upon request.
Frequently Asked Questions
How long can a fiberglass platform be expected to last?
Service life depends on environmental conditions, load frequency, and resin selection. In many industrial environments, FRP platforms require less maintenance than steel and may offer a longer operational life, but specific performance should be evaluated for each application.
Can the platform be used outdoors?
Yes, the material performs consistently under UV exposure, rain, and temperature variation. UV-stabilized resin systems are available for prolonged outdoor use.
Is customization possible for industrial projects?
Yes, dimensions, thickness, surface finishes, and color can be adapted to project requirements. Engineering review is recommended for non-standard configurations.
Is the surface safe for wet and oily work areas?
Grit anti-slip surfaces are designed to provide secure footing in wet, oily, and high-traffic environments. The appropriate surface finish should be selected based on the specific conditions.
Does the platform require special maintenance?
Routine cleaning and periodic inspection are generally sufficient. No painting or galvanizing is required, unlike many metal structures.
Related Products & System Components
Fiberglass platforms are often installed as part of a larger access system. Common related components include:
FRP grating panels for walkways and decking
FRP handrails and guardrail systems
Support beams and structural framing made from FRP or compatible materials
Fastening hardware and hold-down clips
For compatible products and system-level recommendations, contact our engineering team with your project requirements. You may also review our FRP Grating Systems or Fiberglass Mini Mesh Grating pages for related solutions.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, please submit a request. Providing the following information helps our team prepare a more relevant response:
Required panel dimensions and thickness
Support spacing and expected loads
Type of traffic (pedestrian, cart, or vehicle)
Chemical exposure and ambient temperature range
Surface finish preference (gritted, textured, or smooth)
Fire performance or electrical non-conductivity needs
