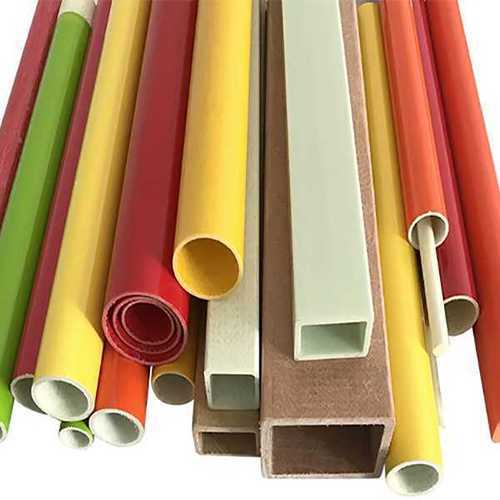

Fiberglass Tube Profile Overview
Fiberglass tube profiles, also known as FRP tubes or composite hollow sections, are pultruded structural members with square, rectangular, or round cross-sections. They combine continuous glass fiber reinforcement with a thermosetting resin matrix to provide corrosion resistance, dimensional stability, and electrical non-conductivity. These lightweight profiles are used in framing, supports, enclosures, and modular structures where long-term durability matters. Cross-section shape, wall thickness, and resin type all influence the mechanical performance.
What Is a Fiberglass Tube Profile?
A fiberglass tube profile is a hollow composite structural section manufactured by pultrusion. It offers high strength along its length while resisting moisture, chemicals, and UV exposure. Unlike metal tubes, it does not rust or conduct electricity, making it a practical alternative in corrosive or electrically sensitive environments. The hollow design keeps weight low while providing excellent stiffness for load-bearing and support applications.
Key Product Facts
- Material: Fiberglass Reinforced Polymer (FRP / GRP)
- Manufacturing method: Pultrusion
- Profile shapes: Square, rectangular, round
- Resin options: Polyester, vinyl ester, epoxy
- Electrical properties: Non-conductive
Material & Construction
The tube profile is produced by pultrusion, a continuous process in which glass fiber rovings and mats are drawn through a resin bath and then through a heated die to form the final hollow cross-section. This method ensures consistent fiber alignment, uniform resin distribution, and repeatable dimensional accuracy.
Resin selection can be tailored to the application: polyester for general use, vinyl ester for enhanced corrosion resistance, and epoxy for higher mechanical performance. The surface can be smooth, veiled, or sanded depending on bonding or finishing requirements. UV-stabilized formulations are available for outdoor exposure.
Typical Applications

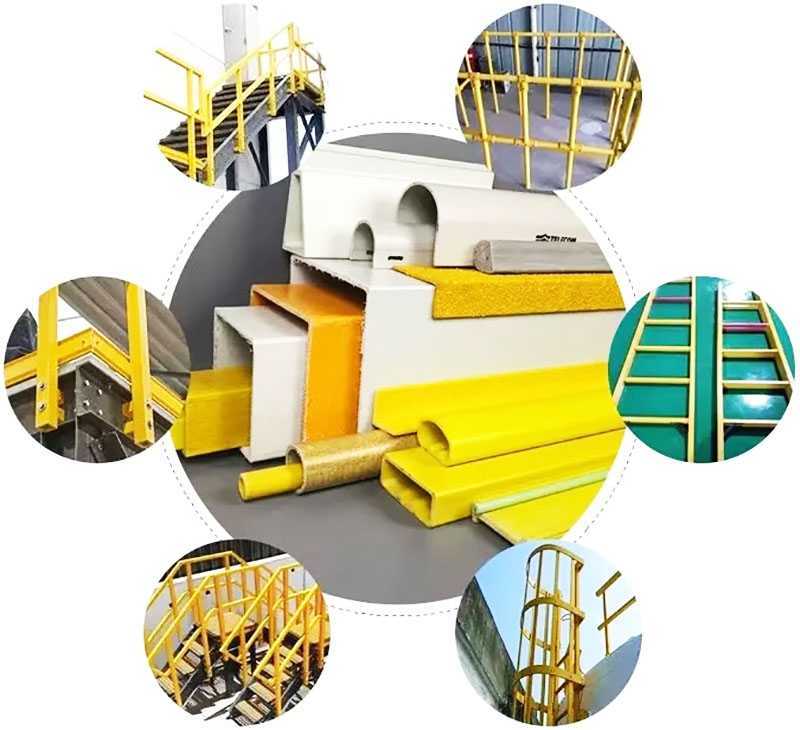

Fiberglass tube profiles are used in industrial and infrastructure environments where corrosion resistance, light weight, and non-conductivity are important. Common application areas include chemical processing plants, wastewater treatment facilities, marine and coastal structures, electrical enclosures, equipment support frames, and renewable energy mounting systems. The profiles can be integrated into permanent structures or modular assemblies for walkways, platforms, protective enclosures, and secondary framing.
Selection Considerations
When specifying a fiberglass tube profile, the following factors typically influence design and performance:
- Cross-section and dimensions: Shape, width, height, and wall thickness must match the expected bending, compression, and torsional loads. Engineering calculations help confirm the right geometry.
- Resin type: Chemical exposure, temperature range, and UV conditions guide the choice between polyester, vinyl ester, and epoxy systems.
- Electrical requirements: The non-conductive nature of FRP makes these tubes suitable near energized equipment or in sensitive environments.
- Surface finish: Smooth surfaces simplify cleaning, while sanded finishes improve bonding. Veiled surfaces provide additional protection.
- Fire performance: Flame-retardant resin formulations are available for projects with specific smoke or flame-spread requirements.
Engineering Data
Flexural strength, compressive strength, and modulus of elasticity vary with profile dimensions, fiber architecture, and resin system. Share your project parameters with our engineering team, and we’ll help you choose the right configuration and provide the applicable technical data.
Technical Specifications
| Property | Standard Options / Values |
|---|---|
| Material | Fiberglass Reinforced Polymer (FRP / GRP) |
| Manufacturing method | Pultrusion |
| Profile shapes | Square, rectangular, round |
| Standard lengths | 3 m, 6 m, or customized |
| Resin systems | Polyester, vinyl ester, epoxy (other resins available) |
| Surface options | Smooth, veiled, sanded |
| Color options | Standard or project-specific |
| Electrical properties | Non-conductive |
Standards & References
Relevant test methods often include those for mechanical properties of pultruded composites, dimensional tolerances, and environmental durability. If your project requires compliance with a specific standard, contact us and we’ll verify the applicable product documentation and test reports for your configuration.
Frequently Asked Questions
Can fiberglass tube profiles be used as load-bearing components?
When specified based on structural calculations and service conditions, pultruded fiberglass tube profiles provide reliable load-bearing performance. The actual capacity depends on cross-section dimensions, wall thickness, resin system, and support configuration.
Are these profiles suitable for outdoor environments?
Yes, fiberglass composites resist moisture, UV exposure, and temperature variation, making them suitable for many outdoor applications. Long-term performance depends on the specific resin system and environmental conditions.
Can dimensions be customized?
Custom cross-sections and lengths can often be produced based on project requirements. Contact us to discuss specific dimensional requirements and minimum order quantities.
How do fiberglass tube profiles compare to metal tubes?
Fiberglass tube profiles are lighter, non-conductive, and resistant to corrosion, which can reduce maintenance and extend service life in appropriate applications. Structural stiffness and load capacity differ from metals, so design calculations should be performed for the specific project.
Related Products & System Components
Fiberglass tube profiles are often used with other FRP structural components. Common related products include:
- Fiberglass angles and channels for framing connections
- FRP T shape profiles for structural reinforcement
- Connection hardware and fastening accessories
For compatible products and system-level recommendations, contact our engineering team with your project requirements. You may also review our FRP Profiles overview or related product families.
Engineering Inquiry
For technical data requests, load calculations, or project-specific drawings, please submit a request. Providing the following information helps our team prepare a more relevant response:
- Required cross-section shape and dimensions
- Wall thickness and length requirements
- Span length and support conditions
- Expected loads and deflection limits
- Chemical exposure and temperature range
- Required resin system or fire performance criteria
- Project quantity and delivery schedule
