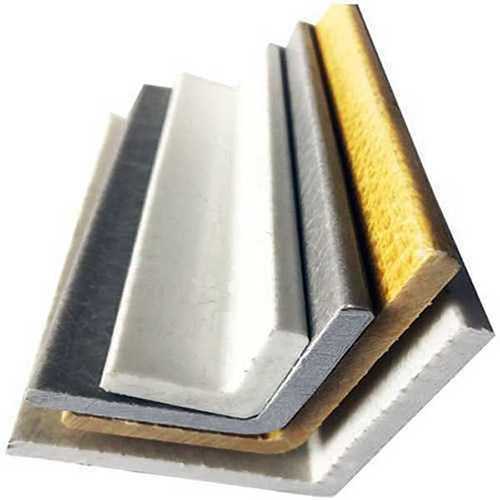

Fiberglass L Shape Angle Profile Overview
Fiberglass L-shaped angle profile, also known as FRP L-angle or GRP angle section, is a pultruded composite structural member with two perpendicular legs forming an L cross-section. It's specified in construction, industrial framing, and marine projects where corrosion resistance and lighter weight are essential. The profile combines continuous glass fiber reinforcement with a thermosetting resin matrix. Structural performance depends on leg dimensions, wall thickness, resin system, and span conditions.
What Is a Fiberglass L-Shape Angle Profile?
A fiberglass L-shaped angle profile is a composite structural member with two perpendicular legs, creating an L-shaped cross-section. It's used as a framing, edging, or support component in industrial and commercial applications where metal profiles would corrode or add unnecessary weight. The profile is pultruded from glass fiber reinforcement and thermosetting resin, giving it a combination of strength, low weight, and long-term corrosion resistance.
Key Product Facts
- Material: Glass fiber reinforcement with thermosetting resin matrix
- Manufacturing process: Pultrusion — continuous glass fiber pulled through a heated die to form the L cross-section
- Cross-section: L-shaped with two perpendicular legs, available in equal or unequal leg lengths
- Configurability: All dimensions, resin systems, and colors are project-specified — there is no default off-the-shelf configuration
- Electrical behavior: FRP is generally non-conductive, though conductivity can vary with resin additives and surface condition
Material & Construction
The profile is produced by pultrusion. Continuous glass fiber rovings and mats are saturated with a thermosetting resin, then pulled through a heated die to form the L-shaped cross-section. The glass fibers carry tensile and flexural loads; the resin matrix locks the fibers in place, provides corrosion protection, and holds the shape.
Resin selection follows the service environment. Polyester systems handle general industrial conditions, while vinyl ester provides enhanced chemical resistance. When fire performance matters, flame-retardant resin formulations can be supplied — just share the relevant standard with us and we'll match the resin to the requirement.
Profile dimensions and wall thickness are set by structural loading and span requirements. Custom leg lengths, thicknesses, and colors are available subject to production feasibility.
If you need to cut or drill on site, seal exposed edges with a compatible resin to maintain corrosion protection. For mixed chemical streams or temperature cycling, we'll work with you to evaluate performance against your actual project conditions.
Applications
FRP L-shaped angle profiles are used wherever structural framing needs corrosion resistance and weight reduction. Typical application areas include:
- Construction framing and corner reinforcement in corrosive environments
- Marine and coastal structures exposed to saltwater
- Industrial facilities such as chemical plants and wastewater treatment areas
- Equipment frames and support structures
- Greenhouse and agricultural infrastructure
These are common industry uses of pultruded FRP structural profiles. To match the profile to your specific load, chemical exposure, and support arrangement, share your project details with our team — we'll help you select the right configuration.
Load Capacity
Load capacity for a fiberglass L-angle profile is calculated per project configuration. The key variables we consider:
- Leg dimensions and wall thickness
- Span length and support conditions
- Fiber content and orientation
- Resin system and operating temperature
- Connection details and fastening method
Load values developed for one project apply only to that analyzed configuration. Changing span, leg size, or support arrangement requires a new calculation — values cannot be carried over without re-evaluation.
Selection Considerations
When specifying a fiberglass L-shaped angle profile, engineers typically evaluate these variables:
- Leg dimensions: Both leg lengths and wall thickness are set by span, load, and deflection limits.
- Resin system: Determines chemical resistance, service temperature range, and fire performance.
- Fiber content and orientation: Influence tensile strength, flexural modulus, and overall stiffness.
- Connection details: Bolted or bonded joints require compatible design and influence load capacity.
- Environmental exposure: UV, moisture, and chemical contact guide resin selection and surface treatment.
We'll provide load ratings and deflection data for your specific profile once these variables are defined. Tell us your layout and we'll run the numbers.

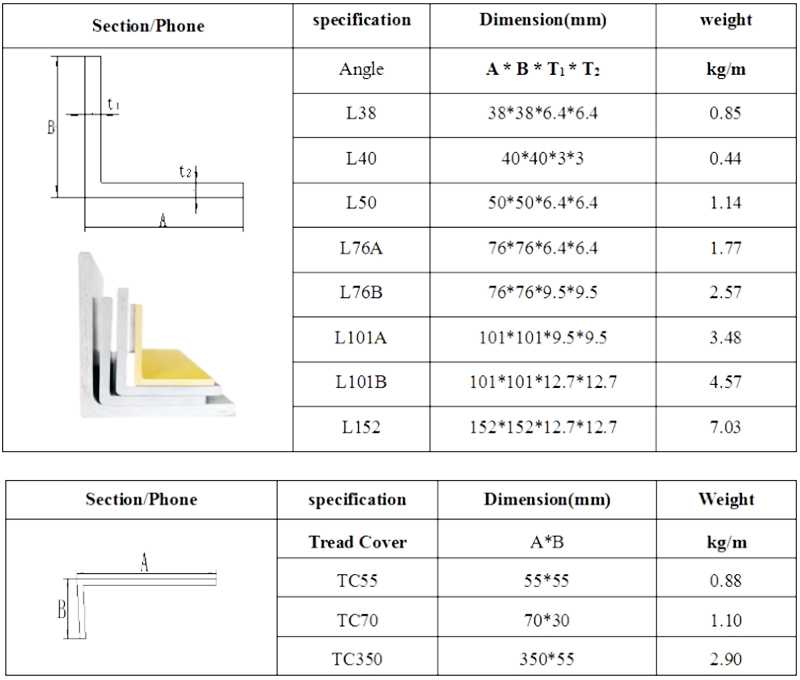

Technical Specifications
The table below summarizes general attributes of fiberglass L-shaped angle profiles. Specific values, dimensions, and performance data are determined per project.
| Attribute | Notes |
|---|---|
| Material | Fiberglass Reinforced Plastic (FRP/GRP) |
| Manufacturing Process | Pultrusion; produces continuous L-shaped profile |
| Cross-Section | L-shaped angle with two perpendicular legs |
| Leg Dimensions | Project-specified; custom sizes available |
| Wall Thickness | Project-specified; selected based on load requirements |
| Length | Project-specified; limited by transport and handling constraints |
| Color Options | Gray and custom colors available, subject to resin system |
| Load Capacity | Configuration dependent |
| Fire Performance | Varies by resin system; flame-retardant formulations available |
| Temperature Performance | Varies by resin system; confirmed through project-specific evaluation |
| Electrical Insulation | FRP is generally non-conductive; actual properties vary with resin and additives |
Project-specific mechanical values, load tables, and resin selection guidance are prepared on request. Submit a Technical Data Request and we'll provide data tailored to your profile configuration.
Standards & References
Mechanical and fire performance of pultruded FRP profiles can be evaluated using applicable test methods. Standards frequently referenced for fiberglass structural shapes include:
- ASTM D790 — Flexural Properties of Unreinforced and Reinforced Plastics
- ASTM D638 — Tensile Properties of Plastics
- ASTM E84 — Surface Burning Characteristics of Building Materials
Frequently Asked Questions
What industries use fiberglass L-shaped angle profiles?
FRP L-angle profiles are widely used in construction, marine, chemical processing, and agricultural sectors. Their corrosion resistance and lighter weight compared to metal profiles make them ideal for structural framing in aggressive environments. We can help you confirm suitability for your specific industry.
Can these profiles be used in high-temperature environments?
Temperature performance depends on the resin system. Some resins handle elevated temperatures better than others. Tell us your operating temperature range and we'll recommend the right resin formulation for your application.
Are custom sizes available?
Yes, leg dimensions, wall thickness, and length can be customized to match your design. Each custom profile is reviewed for production feasibility and minimum order quantity — send us your dimensions and we'll confirm.
How do fiberglass L-shaped angle profiles compare to metal angle profiles?
FRP profiles are lighter, non-conductive, and won't rust. Structural behavior differs, so we compare them based on your specific profile dimensions and project loads. In corrosive environments, FRP often provides a longer service life with less maintenance than unprotected steel.
Can fiberglass angle profiles be cut or drilled on site?
Yes, field cutting and drilling are possible. We recommend sealing any exposed edges with a compatible resin to maintain corrosion protection. We'll include handling and modification guidance with your order documentation.
Related Products & System Components
Fiberglass L-shaped angle profiles are often part of a larger FRP structural system. Common related components include:
- FRP I-beams and channel profiles for complementary structural framing
- FRP grating and decking panels for walking surfaces
- Connection hardware, brackets, and fastening systems
For compatible products and system-level support, contact our engineering team with your project details.
Engineering Inquiry
For technical data, structural calculations, or project-specific drawings, please submit a request. Providing the following details helps our team prepare a focused response:
- Required leg dimensions and wall thickness
- Span and support conditions
- Expected loads and deflection limits
- Chemical exposure and ambient temperature range
- UV exposure and outdoor installation duration
- Fire performance requirements, if any
- Color preference and quantity required
