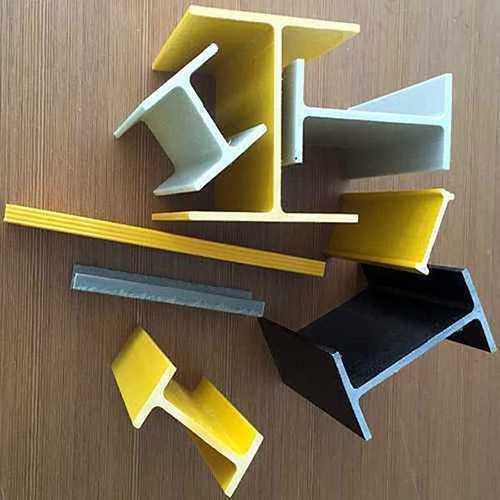

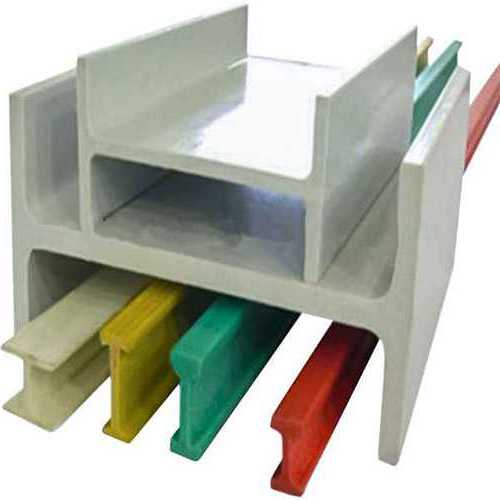

Fiberglass H-Beam Profile Overview
Fiberglass H-beam, also called FRP H-beam or GRP H-section, is a pultruded structural profile with an H-shaped cross-section. It's specified in construction, marine, and industrial projects where corrosion resistance and lighter weight matter. The profile combines continuous glass fiber reinforcement with a thermosetting resin matrix. Structural performance depends on profile dimensions, fiber architecture, resin system, and span conditions.
What Is a Fiberglass H-Beam Profile?
A fiberglass H-beam profile is a pultruded structural member made from fiberglass reinforced plastic (FRP/GRP). Its H-shaped cross-section provides efficient bending resistance and load distribution. These profiles are specified for framing, supports, and load-bearing assemblies in environments where metal may corrode or add unnecessary weight.
Key Product Facts
- Material: Continuous glass fiber reinforcement embedded in a thermosetting resin matrix
- Manufacturing process: Pultrusion — fibers are pulled through a resin bath and heated die to form the H-shaped cross-section
- Cross-section: H-profile geometry designed for bending stiffness and load distribution
- Configurability: All dimensions and resin systems are specified per project; there is no default off-the-shelf configuration
- Electrical behavior: FRP is generally non-conductive, but conductivity can vary with resin additives and surface condition
Material & Construction
The beam is manufactured by pultrusion. Continuous glass fiber rovings are pulled through a resin bath, then guided through a heated die that shapes and cures the H-profile. The glass fibers carry tensile and flexural loads; the resin matrix protects the fibers, provides corrosion resistance, and holds the cross-section shape.
Resin selection is project-driven. Polyester and vinyl ester systems are commonly used for different chemical and temperature exposures. Flame-retardant resin formulations can be supplied when fire performance is part of the specification. If your project requires a specific fire rating, share the relevant standard during inquiry so the right resin system can be matched.
Profile depth, flange width, web thickness, and length are determined by structural requirements. Custom cross-sections are often possible within production capability.
Field cutting or drilling exposes glass fibers and can affect long-term corrosion resistance. Seal cut edges and drilled holes with a compatible resin to restore protection. For mixed chemical streams or temperature cycling, performance is confirmed on a project-specific basis.
Applications
Pultruded FRP H-beams serve as structural members in settings where corrosion and weight are key concerns. Common application environments include:
- Construction framing and supports in humid or chemically aggressive locations
- Marine and coastal structures exposed to saltwater and moisture
- Industrial plants such as chemical processing and wastewater treatment facilities
- Infrastructure projects including walkways, platforms, and secondary structural framing
These are typical industry uses of pultruded FRP structural shapes. Final material and profile selection is based on structural loads, environmental conditions, and applicable design codes for your project.
Load Capacity
Load capacity for any fiberglass H-beam is configuration dependent. The allowable load is calculated from the beam’s cross-sectional dimensions, span length, support conditions, fiber content, resin system, and connection details.
- Cross-sectional dimensions and wall thickness
- Span length and end support conditions
- Fiber orientation and volume fraction
- Resin system and operating temperature
- Fastener type and connection layout
Load values prepared for a specific project apply only to the analyzed configuration. Values from one span or support arrangement should not be used for another without re-evaluation.
Selection Considerations
When specifying a fiberglass H-beam, engineers typically evaluate these variables:
- Profile dimensions: Section depth, flange width, and web thickness are set by span, load, and deflection limits.
- Resin system: Determines chemical resistance, service temperature range, and fire performance characteristics.
- Fiber architecture: Roving orientation and fiber content influence tensile and flexural strength and modulus.
- Connection details: Bolted or bonded joints require compatible design and influence overall load capacity.
- Environmental exposure: UV, moisture, and chemical contact guide resin selection and surface protection.
Mechanical properties are configuration dependent and are confirmed for the selected profile and resin system.
Technical Specifications
The table below lists general attributes of pultruded fiberglass H-beams. Specific values, dimensions, and performance data are determined per project.
| Attribute | Typical Scope / Options | Notes |
|---|---|---|
| Material | Fiberglass Reinforced Plastic (FRP/GRP) | Resin selected based on application |
| Manufacturing process | Pultrusion | Produces continuous H-shaped profile |
| Cross-section | H-beam profile | Custom dimensions available on request |
| Length | Project-specified | Subject to transport and handling constraints |
| Width / depth | Project-specified | Determined by structural design |
| Load capacity | Configuration dependent | Depends on span, supports, and profile size |
| Fire performance | Varies by resin system | Flame-retardant formulations can be supplied |
| Temperature performance | Varies by resin system | Confirmed through project-specific evaluation |
| Electrical insulation | FRP is generally non-conductive | Conductivity varies with resin and additives |
Project-specific mechanical values, load tables, and resin selection guidance are prepared on request. Submit a Technical Data Request to receive data tailored to your configuration.
Standards & References
Mechanical and fire performance of pultruded FRP profiles can be evaluated using applicable test methods. Standards frequently referenced for fiberglass structural shapes include:
- ASTM D790 — Flexural Properties of Unreinforced and Reinforced Plastics
- ASTM D638 — Tensile Properties of Plastics
- ASTM E84 — Surface Burning Characteristics of Building Materials
Frequently Asked Questions
How does fiberglass H-beam compare to steel beams?
FRP H-beams are typically lighter than steel sections of similar size, which can reduce handling and installation effort. Structural behavior differs, so comparison should be based on the specific profile dimensions, span, and loads. In highly corrosive environments, FRP often offers a longer service life with less maintenance than unprotected steel.
Can the beam dimensions be customized?
Yes, custom depths, flange widths, web thicknesses, and lengths can often be produced. Each custom profile is reviewed for production feasibility and minimum order quantity.
Are these beams suitable for high or low temperature service?
Temperature capability depends on the resin system. Some resins are better suited for elevated temperatures, while others perform well in low-temperature conditions. The intended operating range is defined during material selection.
Can fiberglass H-beams be used in seismic zones?
FRP profiles can be used in seismic applications when the structural design accounts for connection behavior and load path. A site-specific structural analysis confirms suitability for any seismic zone.
What about long-term cost compared to steel?
Initial material cost may differ from steel. A full life-cycle view that includes maintenance, corrosion protection, and replacement often shows FRP to be cost-effective in aggressive environments. Each project is evaluated on its own operating conditions and service life requirements.

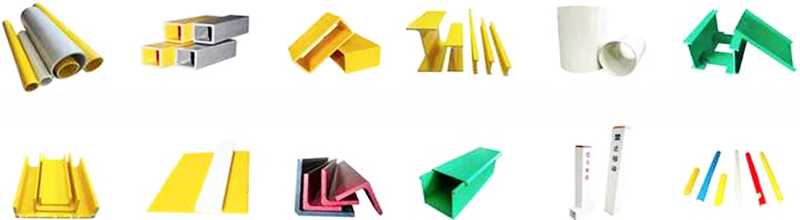

Related Products & System Components
Fiberglass H-beams are usually part of a larger FRP structural system. Common related components include:
- FRP I-beams and channel profiles for complementary framing
- FRP grating and decking panels for walking surfaces
- Connection hardware, brackets, and fastening systems
For compatible products and system-level support, contact our engineering team with your project details.
Engineering Inquiry
For technical data, structural calculations, or project-specific drawings, please submit a request. Providing the following details helps our team prepare a focused response:
- Required beam dimensions (depth, flange width, web thickness)
- Span and support conditions
- Expected loads and deflection limits
- Chemical exposure and ambient temperature range
- UV exposure and outdoor installation duration
- Fire performance requirements, if any
