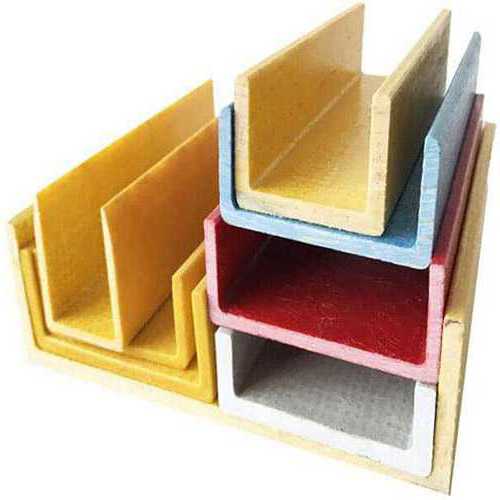

Fiberglass C Shape Channel Profile Overview
Fiberglass C-shape channel profiles, also known as FRP C channels or pultruded composite channels, are structural members made from glass fiber reinforcement embedded in a thermosetting resin matrix. They are used for support, framing, and load‑bearing applications in industrial environments where corrosion resistance and electrical insulation are beneficial. Common uses include chemical processing, marine, electrical, and wastewater treatment facilities. The exact profile dimensions, resin system, and mechanical performance are determined by project‑specific load, chemical exposure, and environmental conditions.
What Is a Fiberglass C Shape Channel Profile?
A fiberglass C-shape channel profile is a pultruded composite structural member with a C-shaped cross-section. It consists of continuous glass fiber reinforcement combined with a thermosetting resin such as polyester, vinyl ester, or phenolic. This profile provides a lightweight, corrosion‑resistant alternative to metal channels in many industrial framing and support applications. It is also referred to as a glass fiber reinforced plastic C channel, FRP structural channel, or pultruded C profile.
Key Product Facts
- Material: Glass fiber reinforcement with polyester, vinyl ester, or phenolic resin matrix
- Manufacturing process: Pultrusion, which aligns fibers primarily along the length of the profile for consistent mechanical properties
- Cross-section: C-channel shape, with width, height, and wall thickness specified per project
- Resin options: Standard and fire-retardant grades available to match chemical environment and fire performance requirements
- Weight: Lighter than many traditional metal structural profiles
- Customization: Profile dimensions and lengths are project-specific; no fixed default configuration applies
Material & Construction
This profile is manufactured using the pultrusion process. Continuous glass fiber rovings and mats are saturated with a thermosetting resin system—typically polyester, vinyl ester, or phenolic—then pulled through a heated die to form the C-shaped cross-section. The result is a composite profile with fibers oriented predominantly in the longitudinal direction, which contributes to high tensile and flexural strength along its length. The resin matrix provides corrosion resistance and environmental protection.
Resin selection is driven by the specific chemical exposure, operating temperature, and mechanical requirements of the application. Fire-retardant resin formulations are available for projects that require defined fire performance characteristics.
Field cutting or drilling can expose glass fibers, so proper edge sealing with a compatible resin is recommended after any modification. For mixed chemical streams, cycling temperatures, or abrasive conditions, performance depends on the specific operating environment.
Typical Applications
Fiberglass C-shape channel profiles are commonly used in industrial environments where corrosion resistance, electrical insulation, or reduced weight are important. Typical industry applications include:
- Chemical processing plants: Structural supports, walkways, and pipe racks
- Marine and offshore structures: Framing and support members in humid or corrosive conditions
- Electrical and utility installations: Non-conductive cable supports and equipment platforms
- Wastewater treatment facilities: Components exposed to moisture and chemical vapors
- Cooling tower and infrastructure framing: Structural members that resist humidity and chemical exposure
Actual suitability for a particular project depends on load requirements, chemical exposure, temperature range, and installation conditions.
Load Capacity
The allowable load for a given profile configuration depends on several factors:
- Profile cross-sectional dimensions (width, height, wall thickness)
- Span length and support conditions
- Fiber content and orientation
- Resin system and temperature effects
- Governing design code and allowable stress criteria
Engineering calculations are performed for each specified configuration to establish load ratings and deflection limits. The results apply only to the analyzed configuration and the stated design conditions.
Selection Considerations
When selecting a fiberglass C-shape channel profile, the following variables should be evaluated based on project-specific conditions:
- Load requirements: Load-bearing capacity depends on profile dimensions, wall thickness, fiber content, and support span. Project-specific calculations can be prepared based on provided dimensions and expected loads.
- Resin system: Polyester, vinyl ester, and phenolic resins offer different chemical resistance and temperature capabilities. Resin selection should match the specific chemical environment and operating conditions.
- Fire performance: Fire-retardant resin grades are available as options. If fire performance is required, specify the relevant standard or test method for evaluation.
- UV exposure: For long-term outdoor use, UV-stabilized resin systems are available. Suitability depends on the resin type and exposure conditions.
- Electrical insulation: FRP is non-conductive; however, dielectric properties vary with resin type, profile thickness, and surface condition. Confirm requirements with the engineering team for electrical applications.
- Field modifications: Cutting or drilling can expose glass fibers and may affect corrosion resistance. Proper edge sealing with a compatible resin is required after any field modification to maintain protective properties.
Technical Specifications
| Property | Notes |
|---|---|
| Material | Glass fiber reinforcement with polyester, vinyl ester, or phenolic resin matrix |
| Manufacturing Process | Pultrusion for consistent cross-section and fiber alignment |
| Cross-Section | C-channel profile; width, height, and wall thickness specified per project |
| Length | Project-specified; may be limited by transport and handling constraints |
| Resin Options | Standard and fire-retardant grades; selection depends on chemical environment and fire performance needs |
| Mechanical Data | Representative mechanical property values are available upon request when profile geometry and resin system are specified |
All dimensions, load ratings, and material properties are project-specific. Contact the engineering team with your requirements for detailed technical data and calculations.
Standards & References
Mechanical and fire performance of FRP profiles may be evaluated in accordance with applicable test methods, depending on project requirements. Commonly referenced standards include:
- ASTM D638 — Standard Test Method for Tensile Properties of Plastics
- ASTM D790 — Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics
- ASTM E84 — Standard Test Method for Surface Burning Characteristics of Building Materials
Frequently Asked Questions
How does a fiberglass C-shape channel profile compare with steel?
FRP profiles are generally lighter and provide corrosion resistance and electrical insulation. Steel may offer higher stiffness for a given cross-section. The choice depends on the specific load requirements and environmental conditions. For a direct comparison, provide the application parameters and our engineering team can evaluate both options.
Can I request custom sizes or lengths?
Custom dimensions, wall thicknesses, and lengths are available based on project requirements. Please provide the desired cross-section and length specifications for quotation. Profile geometry is subject to production feasibility and minimum order quantities.
Is this profile suitable for outdoor applications?
FRP profiles can be used outdoors. UV-stabilized resin systems are available for long-term outdoor exposure. Suitability depends on the resin system and the specific environmental conditions. For aggressive outdoor environments, additional design considerations may be recommended.
What industries commonly use FRP C channels?
FRP C channels are commonly used in chemical processing, marine, electrical, wastewater treatment, and construction applications where corrosion resistance or electrical insulation is needed.
Can these profiles be cut or drilled on site?
Field cutting or drilling is possible, but it exposes glass fibers and can compromise the protective resin surface. Proper edge sealing with a compatible resin is required after any field modification to maintain corrosion resistance. Installation guidelines should be followed.
Related Products & System Components

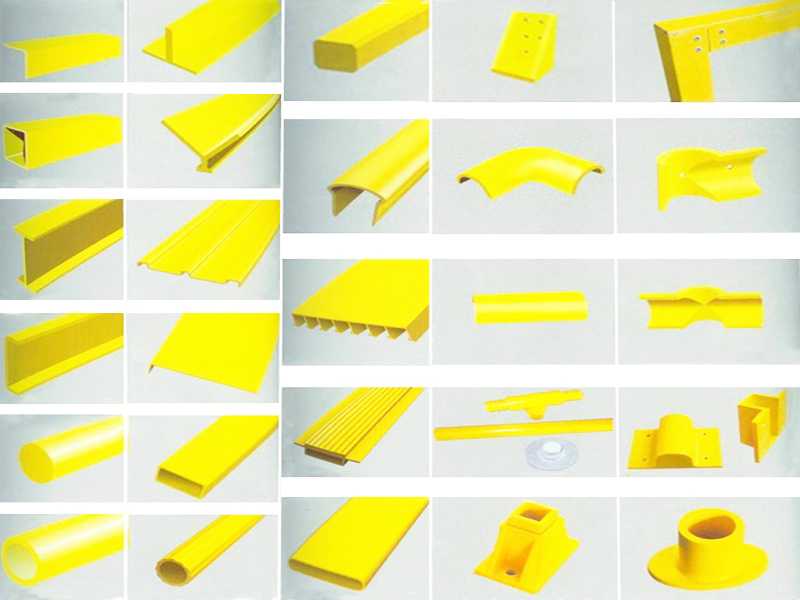

Fiberglass C-shape channel profiles are often used alongside FRP grating, structural shapes, and connection hardware. For complete framing or support systems, refer to related FRP product pages or contact our engineering team for a compatible system recommendation.
Engineering Inquiry
For technical data requests, structural calculations, or project-specific drawings, please submit a request. Provide the following information to help our team prepare a tailored response:
- Profile dimensions (width, height, wall thickness, length)
- Required resin system or chemical environment
- Expected loads and support conditions
- Applicable standards or fire performance requirements
