FRP Rebar Overview
FRP rebar, also known as glass fiber reinforced polymer (GFRP) rebar or fiberglass rebar, is a non-metallic bar used to reinforce concrete. It combines continuous glass... Read More
FRP rebar, also known as glass fiber reinforced polymer (GFRP) rebar or fiberglass rebar, is a non-metallic bar used to reinforce concrete. It combines continuous glass fibers with a thermosetting resin matrix. FRP rebar is commonly manufactured by pultrusion, and surface profiles such as ribs or a sand-coated finish may be used to develop bond with concrete. Bar properties and suitability depend on the bar geometry, composite materials, surface profile, and project design requirements.
What Is FRP Rebar?
FRP rebar in this product category refers to glass fiber reinforced polymer (GFRP) reinforcement bars intended for concrete applications.
Key Product Facts
Material: Continuous glass fibers embedded in a thermosetting resin matrix.
Manufacturing process: Pultrusion is commonly used to form continuous composite bars with fibers aligned primarily along the bar length.

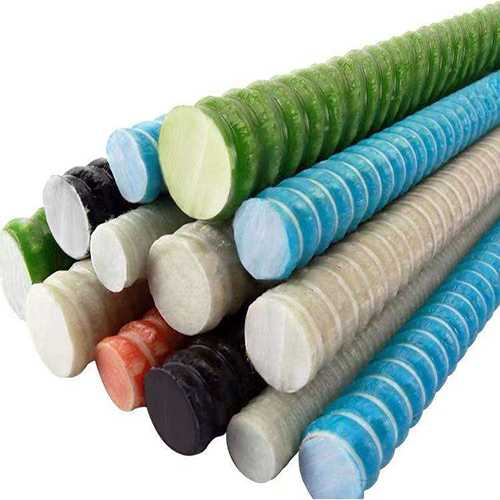

Surface: Ribbed or sand-coated finishes may be used to support bond with concrete; the available finish should be confirmed for the selected product.
Product role: Non-metallic reinforcement for concrete structures.
Material and Construction
In a typical pultrusion process, continuous glass fiber rovings are impregnated with resin and drawn through a forming die, where the composite takes shape and the resin cures. The fibers are aligned mainly along the bar axis, providing the primary reinforcement in that direction.
The resin matrix binds the fibers into a composite bar. Surface geometry or a sand-coated finish may be used to improve mechanical interaction with the surrounding concrete. The resin system, fiber architecture, bar geometry, and surface treatment should be considered together when evaluating a particular configuration.
Applications
Engineers may evaluate FRP rebar for concrete structures where non-metallic reinforcement is required or where corrosion of metallic reinforcement is an important design consideration. Potential project contexts include:
Marine and coastal concrete structures, including seawalls, piers, and bridge decks.
Water and wastewater treatment facilities.
Chemical processing facilities and containment structures.
Power generation facilities and substations where non-metallic reinforcement may be relevant.
Transportation infrastructure exposed to de-icing salts.
Underground structures and tunnel linings.
Application suitability must be assessed against the actual exposure conditions, structural design, and properties of the selected bar configuration.
Selection Considerations
FRP rebar selection should be based on the project design and the properties of the specific product configuration. Relevant considerations include:
Bar diameter and the tensile properties required by the structural design.
Modulus of elasticity and stiffness requirements for the concrete member.
Resin system and expected exposure to moisture, chemicals, and temperature.
Surface profile and bond requirements between the bar and concrete.
Concrete cover, development length, reinforcement layout, and installation conditions under the applicable design approach.
Sustained or cyclic loading and other project-specific service conditions.
FRP rebar does not behave identically to steel reinforcement. It should be specified through an appropriate structural design process, not as an automatic one-for-one material substitution.
Technical Characteristics
The table below summarizes general characteristics of glass fiber reinforced polymer rebar. It is not a substitute for the technical data applicable to a specific product configuration.
General characteristics of FRP rebar
Characteristic
Description
Material type
Glass fiber reinforced polymer (GFRP).
Reinforcement
Continuous glass fibers, aligned primarily along the bar length.
Resin matrix
Thermosetting polymer resin; the specific resin system depends on the product configuration.
Manufacturing process
Pultrusion is a commonly used process for continuous composite bars.
Surface
Ribbed or sand-coated finishes may be used; confirm the finish for the selected product.
Bar diameter
Specify according to the available product range and structural design requirements.
Tensile properties
Depend on the fiber and resin system, bar geometry, and product configuration. Use applicable product data for design.
Modulus of elasticity
Depends on the composite material system and fiber architecture; use verified values for structural calculations.
Electrical and magnetic characteristics
GFRP is non-metallic. Suitability for electrically or magnetically sensitive facilities should be checked against project requirements and applicable product information.
Frequently Asked Questions
Can FRP rebar be used instead of steel reinforcement?
FRP rebar is an option for reinforcing concrete, but its stiffness, tensile behavior, bond characteristics, and design considerations differ from those of steel. The reinforcement layout and member design should be checked for the selected FRP product rather than assuming a direct one-for-one substitution.
Does FRP rebar bond with concrete?
Bond behavior depends on the bar surface profile and geometry, concrete properties, and installation conditions. Ribbed or sand-coated surfaces may be used to develop bond. Design should use appropriate information for the selected bar and project.
Can FRP rebar be considered for electrical or magnetic environments?
GFRP rebar is non-metallic and does not have the same electrical and magnetic behavior as steel reinforcement. For electrically or magnetically sensitive facilities, confirm that the selected product and structural design meet the project requirements.
Can FRP rebar be cut on site?
Cutting requirements depend on the product and installation instructions. Use suitable cutting equipment, dust control, and personal protective equipment, because cutting composite bars can generate dust containing fiber and resin particles. Follow the supplier's instructions for the selected product.
Does FRP rebar rust?
GFRP is non-metallic and does not rust in the same way as steel. Its long-term performance still depends on the composite material system, exposure conditions, structural design, and installation.
Engineering Inquiry
To evaluate FRP rebar for a project, share the requirements that affect product selection:
Required bar diameter and length.
Structural tensile and stiffness requirements or the relevant design specification.
Concrete cover, reinforcement layout, and development requirements.
Expected exposure conditions, including moisture, chemicals, and temperature.
Estimated quantity and required delivery schedule.
Product options and technical information should be confirmed against the specific project requirements and the applicable product documentation.
