Pulp and paper mills combine high humidity, process chemicals, washdown water, and continuous production. In areas such as bleach plants and chemical preparation zones, walkways, platforms, handrails, and cable-support systems may be exposed to oxidizing chemicals, acidic or alkaline process streams, and repeated wet conditions. FRP is often considered for these applications because its corrosion behavior differs from that of conventional metallic materials, while its suitability still depends on the resin system, product configuration, and actual service environment.

This article explains how FRP is commonly used in pulp and paper mills, which product types are relevant, and which material-selection factors engineers typically review. It provides general industry guidance rather than performance data for a specific FRP product or configuration.

Chemical Exposure in Pulp and Paper Mills

The most demanding chemical environments are often found in bleach plants and chemical preparation areas. Typical exposure factors include:

  • Chlorine dioxide and other oxidizing chemicals: bleaching processes can involve strong oxidizing agents that require appropriate resin selection.
  • Hypochlorite solutions: these oxidizing solutions can create demanding conditions for structural and support materials.
  • Acidic and alkaline process streams: different stages of the process can expose equipment and access structures to substantially different chemical environments.
  • High humidity and washdown water: persistent moisture increases the importance of corrosion resistance, drainage, surface condition, and maintenance considerations.

These exposures may occur together rather than as isolated conditions. A walkway or support structure in a bleach plant may encounter vapors, splashes, washdown water, and process residues over the course of normal operation. Material selection therefore needs to reflect the exposure at the specific installation location.

Typical FRP Products in Pulp and Paper Mills

FRP Grating

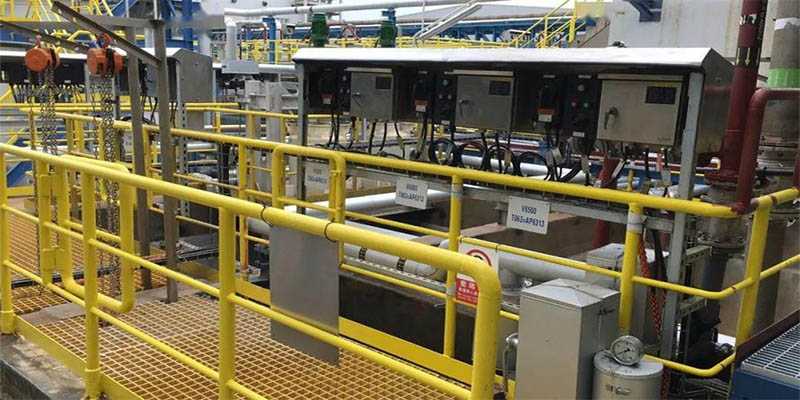

FRP grating is commonly used for walkways, platforms, and stair treads. Open mesh designs can provide drainage in wet areas, while the selected surface finish influences slip resistance. In chemically exposed locations, the resin system and grating construction should be matched to the expected environment. Visit FRP grating for product details.

FRP Handrails and Guardrails

Handrails and guardrails are used around tanks, chests, elevated walkways, and other access areas. FRP avoids metallic rusting and can also be relevant where electrical insulation is a design consideration. The complete system still needs to be selected and installed according to the structural, access, and environmental requirements of the application. See fiberglass handrails for more information.

Fiberglass Cable Tray

Cable-support systems in pulp and paper mills may be exposed to high humidity, chemical vapors, splashes, and washdown conditions. Fiberglass cable tray is considered in environments where corrosion resistance and electrical insulation are relevant to the installation. Cable routing, support requirements, environmental exposure, and the selected material system should be considered together. Visit fiberglass cable tray for product information.

Platforms and Access Structures

Maintenance platforms and access structures around process equipment may face a combination of chemical exposure, moisture, and mechanical loading. FRP can be considered where corrosion exposure and structural access requirements are both part of the design. Panel selection, support arrangement, connection details, and surface finish should be matched to the intended use.

Why Mixed Chemical Exposure Matters

One of the important considerations in pulp and paper applications is that actual process environments are often more complex than a single chemical listed in a resistance table. A material may encounter combinations of oxidizers, acids, alkalis, organic compounds, temperature changes, moisture, and process residues.

Mixed chemical exposure: Published chemical-resistance information often describes individual chemicals under defined conditions and may not represent the behavior of a material in a mixed process stream. The exposure conditions at the installation location should be considered when selecting the material system.

This distinction is important when reviewing resin selection. A resistance value reported for one chemical under defined conditions should not automatically be treated as a direct prediction of performance in a mixed process environment. Concentration, temperature, exposure pattern, and the combination of chemicals can all affect the material-selection decision.

FRP Material Selection Factors

When FRP is being considered for a pulp and paper mill, engineers typically review several factors together:

  • Resin system: vinyl ester systems are commonly considered for more aggressive chemical exposure, while polyester systems may be considered for less aggressive areas. The appropriate choice depends on the chemical environment and application requirements.
  • Surface finish: wet walkways and platforms may require an appropriate anti-slip finish. Drainage and surface condition should be considered separately when assessing access safety.
  • Load requirements: walkways, platforms, and stair systems must be sized for their intended loads, support spacing, and configuration.
  • Fire performance: where project requirements include specific fire-performance criteria, the selected material system should be checked against the applicable specification.
  • Field modifications: where cutting or drilling is permitted on site, exposed edges should be treated in accordance with the product manufacturer's installation guidance.

These factors are interconnected. Chemical resistance alone does not define the complete material choice; load, surface condition, access requirements, installation details, and the local operating environment also influence the final specification.

Cost Considerations

The cost of an FRP system is not determined only by the base material. Resin selection, product type, fabrication, connection details, installation and handling, and future maintenance requirements can all affect the overall project cost. For pulp and paper applications, these factors are best considered together with the exposure conditions and the expected use of the installation rather than as a simple material-price comparison.

Summary

Pulp and paper mills can expose access and support structures to high humidity, oxidizing chemicals, acidic or alkaline process streams, and repeated washdown. FRP grating, handrails, cable trays, platforms, and related access components are commonly considered for such environments. The key selection issues are the actual chemical exposure, resin system, surface finish, loading, fire-performance requirements, and installation conditions. Because real process environments can involve mixed chemical exposures, material selection should be based on the specific service conditions rather than on a single chemical-resistance value alone.
