Fiberglass T Shape Profile
Fiberglass T Shape Profile

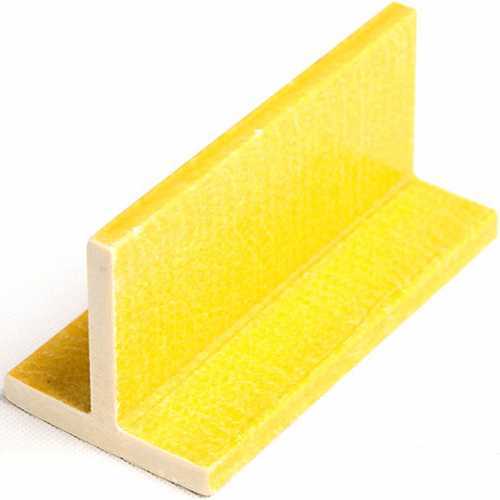

Fiberglass T shape profile is a pultruded composite structural component with a T-shaped cross-section. It is made from glass fiber reinforcement embedded in a thermosetting resin matrix. The profile provides corrosion resistance and dimensional stability in industrial and outdoor environments. Typical applications include structural framing, equipment supports, and access systems where electrical non-conductivity and low maintenance are important. Mechanical properties depend on the resin system, fiber content, and profile dimensions.
Fiberglass T shape profile is a composite structural section with a vertical web and horizontal flange, manufactured by pultrusion. It is used for load-bearing and reinforcing applications where resistance to corrosion, moisture, and electrical conductivity is required.
The profile is produced by pultrusion, a continuous process where glass fiber rovings and mats are pulled through a resin bath and then through a heated die to form the final T-shaped cross-section. This method ensures consistent fiber alignment, uniform resin distribution, and repeatable dimensional accuracy. The material composition can be adjusted by selecting resin types (such as polyester, vinyl ester, or epoxy) to match specific chemical or temperature conditions. The profile surface is smooth and may be produced in standard or custom colors.
Fiberglass T shape profiles are used in industrial and infrastructure settings where corrosion resistance, light weight, and non-conductivity are important. Common application areas include chemical processing plants, wastewater treatment facilities, marine and coastal structures, electrical enclosures, and equipment support frames. They can be integrated into walkways, platforms, secondary framing, and bracing systems. The profiles are suitable for both permanent installations and modular systems.
Key variables when selecting a fiberglass T shape profile include required load-bearing capacity, span length, chemical exposure, temperature range, UV exposure, fire performance requirements, and electrical insulation needs. The appropriate resin system and profile dimensions should be determined through project-specific structural calculations. HotFRP can provide technical guidance to support selection.
Mechanical properties such as flexural strength, tensile strength, and modulus of elasticity are configuration dependent and must be confirmed based on the specific resin system, fiber architecture, and profile geometry. Test reports and material data sheets are available upon request for qualified project requirements.
| Property | Standard Options |
|---|---|
| Material | Fiberglass Reinforced Polymer (FRP / GRP) |
| Manufacturing Method | Pultrusion |
| Profile Geometry | T-section |
| Standard Lengths | 3 m, 6 m, or project-specific cuts |
| Resin Systems | Polyester, vinyl ester, epoxy (other resins may be available) |
| Color Options | Standard industrial colors or custom formulations |
| Electrical Properties | Non-conductive |
Specifications are based on standard product documentation and may vary by configuration. Confirm final specifications with HotFRP.
Applicable standards and test methods may include those related to mechanical properties of pultruded composites and environmental durability. Compliance with any specific standard must be verified against current product documentation and test reports. Contact HotFRP for information on standards relevant to your project.
When correctly specified based on load calculations and service conditions, pultruded fiberglass T profiles can provide stable performance under sustained loads. The actual capacity depends on profile dimensions, resin system, and support configuration.
Fiberglass composites are generally resistant to moisture, chemicals, and salt exposure, which makes them suitable for many corrosive environments. However, chemical compatibility depends on the specific resin system selected; project-specific evaluation may be required.
Profiles can often be produced in custom lengths and cut to project-specific dimensions. Other customizations, such as surface finish or color, may also be possible depending on order volume.
Fiberglass T profiles are lighter, non-conductive, and resistant to corrosion, which can reduce maintenance and extend service life in appropriate applications. However, structural stiffness and load capacity differ from metals, so design calculations should be performed for the specific project.
Fiberglass T shape profiles are often used with other FRP structural components. Common related products include:
For compatible products and system-level recommendations, contact our engineering team with your project requirements. You may also review our FRP Profiles overview or related product families.
For technical data requests, load calculations, or project-specific drawings, please submit a request. Providing the following information helps our team prepare a more relevant response:
