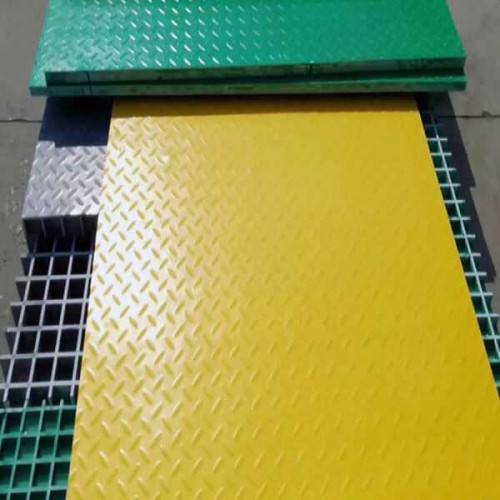

Top covered FRP checker plate grating is made by adding a fiberglass surface cover on the top of the open mesh molded FRP gratings so that dust and small sundries will not fall through the grating.
Top covered FRP chequered plate grating is ideal for new constructions and replacements for duct covers but is also well suited for refurbishment applications to replace old, heavy & cumbersome traditional flooring materials and covers. The characteristics of checker plate FRP gratings make them more favourable for duct covers rather than using steel, timber or concrete systems due to its lower weight, anti-slip surface, and ease for installation and maintenance.
Brief Introduction of FRP Gratings
Fiberglass Reinforced Plastic (FRP) grating is a plank shaped material cured in the matrix of unsaturated resins including isophthalic, orthophthalic,vinyl ester and phenolic, with reinforced frame of fiberglass roving through a special production process, with a certain rate of open meshes.
Fiberglass molded grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP molded grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc., it`s also an ideal loading frame for corrosion circumstances.
Properties of Molded Gratings
Molded gratings are woven with fiberglass roving, and then cured in one piece in a whole mould.
1. Basic Raw Materials: alkali free glass fiber, resin and filling powder fully impregnated with interwoven structure ensures great corrosion resistance.
2. The whole structure helps even distribution of load and contributions to installation and mechanical properties of the supporting construction.
3. The lustrous surface and sliding surface helps self-clean advantage.
4. The concave surface grating ensures a good anti-slippery function and the gritted surface grating is even much better.
5. Grid Specification: 19/25/38/50mm
6. Colors: Yellow, green, gray, black, red, and blue, can be customized according to the color card
7. Product Features: light weight, high strength, easy installation, high strength, flame retardant, etc.
8. Application of covered chequer fiberglass gratings: Sewage treatment plant walkway, cable trench, chemical plant, municipal, offshore platform, industrial flooring, etc.
Benefits
The FRP checker plate grating offers numerous benefits to users. Its low maintenance requirements reduce long-term costs, while its durability ensures a prolonged service life. Furthermore, its anti-slip properties enhance safety in high-traffic areas, contributing to accident prevention and employee well-being.
Installation and Customization
Available in various sizes and configurations, this grating can be tailored to specific project requirements. Its ease of installation makes it a convenient choice for both new construction projects and retrofitting existing structures. The customizable nature of the product allows for seamless integration into diverse environments.
Applications
This versatile product finds applications in a wide range of industries, including chemical processing plants, food and beverage facilities, wastewater treatment plants, marine environments, and more. Its resistance to corrosion and chemicals makes it an ideal choice for areas where exposure to harsh substances is common.
